In this article, I’m going to show you the step by step guide to install macOS High Sierra on PC. There are hundreds of Videos and posts on the internet, but in this guide, you’ll learn all the steps with screenshots and easy wording sentences. Creating a Hackintosh PC these days became an excellent topic for none Apple users. It’s costly to buy an iMac or MacBook device, and most people can’t afford it. That’s the reason some volunteer developers try hard to create some tools and application to use them and building a Hackintosh PC with a minimal budget.

Note: This guide is mainly for GIGABYTE systems, and some supported Intel Based systems.

Install macOS High Sierra on PC -Hackintosh 2018

  1. Download macOS High Sierra
  2. Create a Bootable USB Via UniBeast
  3. Change BIOS Settings to support macOS
  4. Install macOS High Sierra on PC
  5. macOS High Sierra Post Installation
  6. Troubleshooting

Tested on GA-Z270N WiFi Motherboard

We’ve installed macOS High Sierra on Gigabyte Z270N WiFi Motherboard. You can check the system specifications down below.

  • Processor: Intel Core i7-7700k
  • CPU Speed: 4.20 GHz
  • Ram: 16 GB
  • Graphics: Intel HD Graphics 630
  • Chip Type: Intel HD Graphics
  • DirectX Version: Direct X 12

What works?

  • Ethernet
  • Bluetooth
  • Apple Store and iCloud
  • iMessage
  • External WiFi
  • Sleep power
  • External USB headphone
  • USB 3.0

What doesn’t work?

  • Graphics
  • Sound

Things to Download

Step #1. Download macOS High Sierra

At the very beginning, you need to Download macOS High Sierra from App Store using your Apple ID on any Mac or functional computer running Mac Operating System. Launch App Store and click on the Feature tab then look at the right-hand side for macOS High Sierra. Click on Download button and type your Apple ID with the password.

Download macOS High Sierra Free

Download macOS High Sierra Free

Step #2. Create a Bootable USB Installer Via UniBeast

Once you’ve downloaded macOS High Sierra, it’s time to create a bootable USB installer.

Register at tonymacx86 to Download UniBeast if you don’t have one. Also, you must back up all your data because you might lose it. Once you’re done till here, then follow the steps down below.

  • Insert the USB flash drive to your MacBook Pro, Air, iMac, or Virtual Machine running macOS.
  • Open Disk Utility. Navigate to Application>Utilities>Disk Utility
  • Select the USB Thumb Drive in the left column
  • Click on Erase Tab
  • As a name type USB, like format, select Mac OS Extended Journaled and as scheme choose GUID Partition Map.
  • How to create bootable USB installer for macOS Sierra Using UniBeast

    Erase-USB-for-macOS-Sierra

  • Click Erase and wait for a few seconds. Finally, click Done and quit Disk Utility.

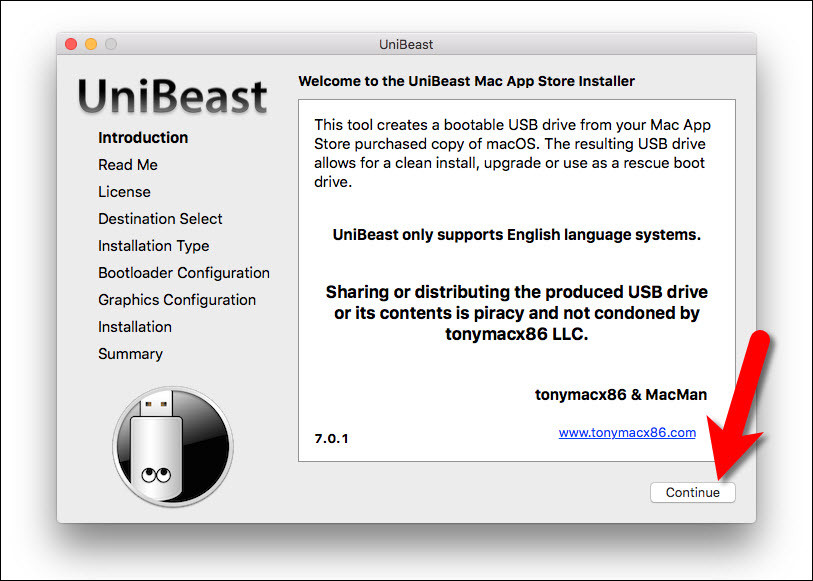

  • Run UniBeast and click Continue>Continue>Continue>Agree.
How to create bootable USB installer for macOS Sierra Using UniBeast

Welcome-to-Unibeast

  • Select the USB drive and click Continue.
  • At the Select OS Installation screen, choose High Sierra and click Continue. At the Bootloader Options screen, select UEFI Boot Mode or Legacy Boot Mode. UEFI Boot Mode is recommended for 7/8/9/100/200 Series CustoMac desktops and all UEFI capable systems. Legacy Boot Mode is recommended for 5/6 Series CustoMac desktops and all BIOS-based systems.
  • Select an appropriate graphics configuration and click Continue.
  • Verify installation options then click Continue. Enter the Password and click Install.

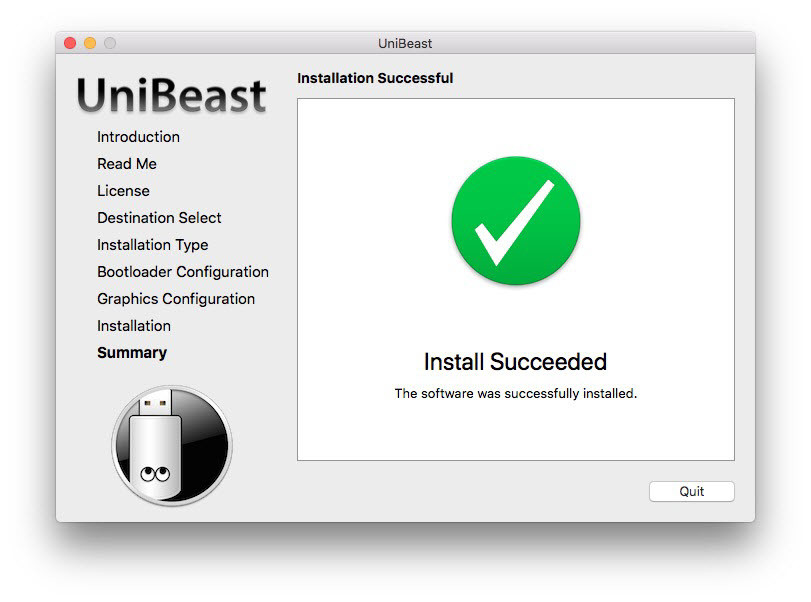

How to Create Bootable USB Installer for macOS High Sierra via UniBeast

USB Installer created Successfully

If you didn’t understand the above topic, visit this step by step guide to creating a Bootable USB install via UniBeast. Also, if you don’t have any Apple device, then you Create Bootable USB Installer on Windows.

It’s time to Download MuliBeast from tonymacx86 and send it to your Bootable USB Installer because later on, you’ll need it for post installation.

Step #3. Change BIOS Setting to Support macOS

Restart your PC and press Delete key to access BIOS Setup. Find out your Boot menu key and Bios key if you don’t know. Once you see the BIOS setup, then load everything to default.

#1. Click Load Optimized Defaults and click Yes button.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Load Optimized Default

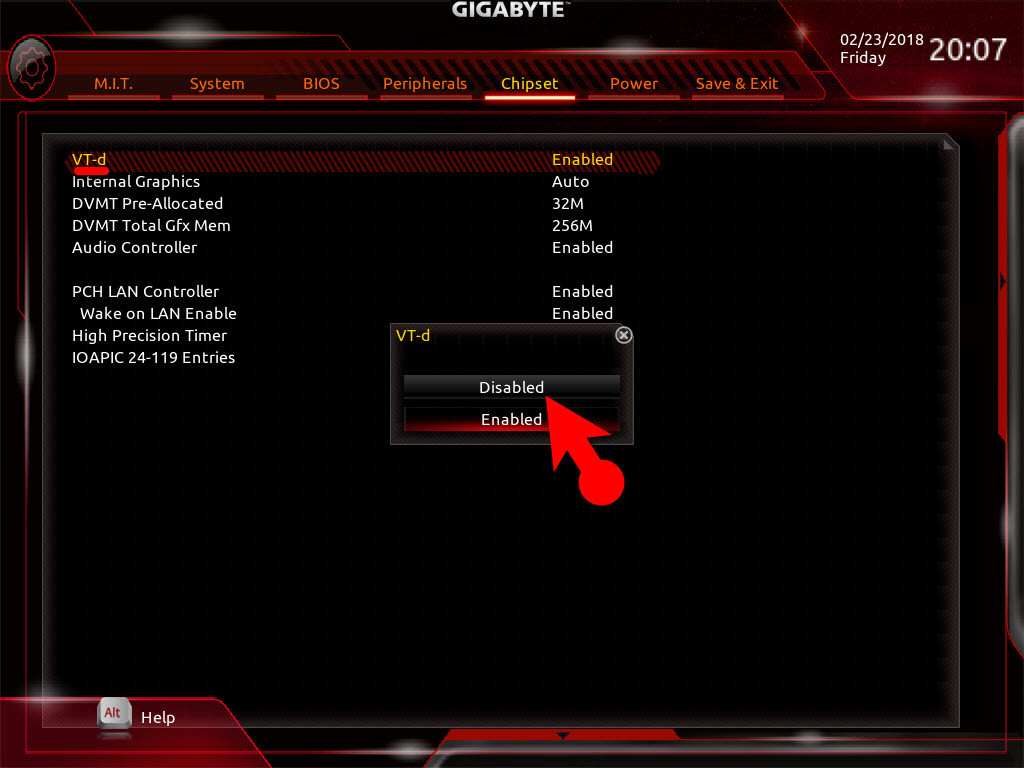

#2. Navigate to Chipset tab. Disable VT-d.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Virtualization Technology

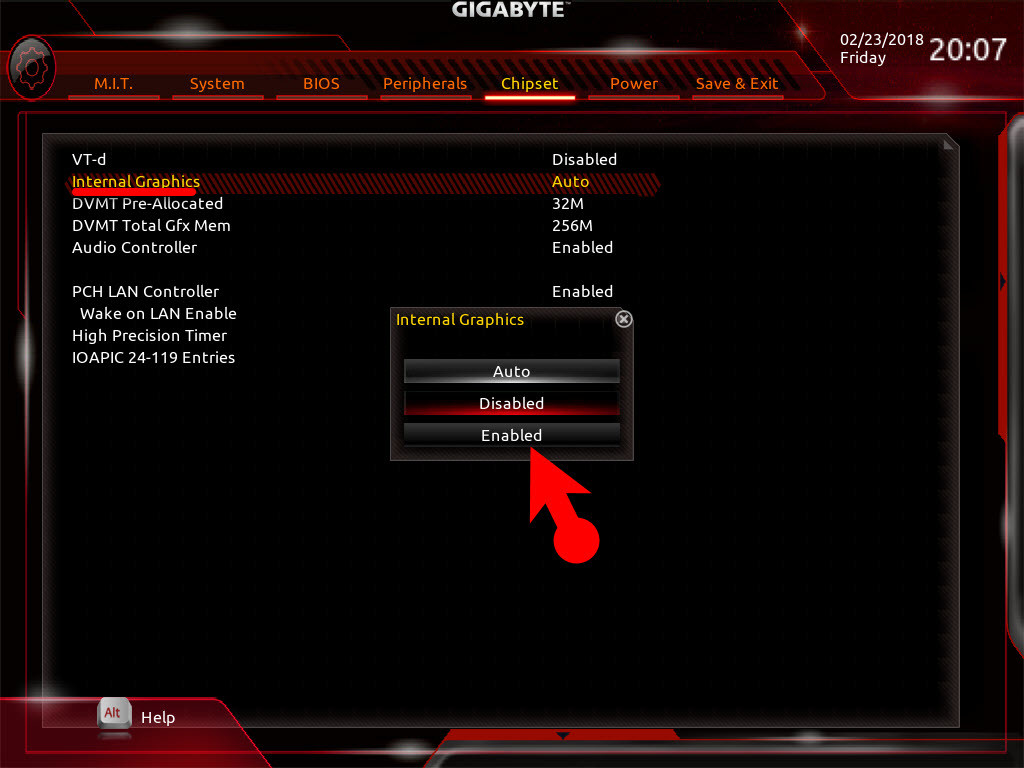

#3. If you use External Graphics card such as NVIDIA, then Disable Internal Graphics, but if you don’t use External Graphic card, then you need to Enable Internal Graphics.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Internal Graphics

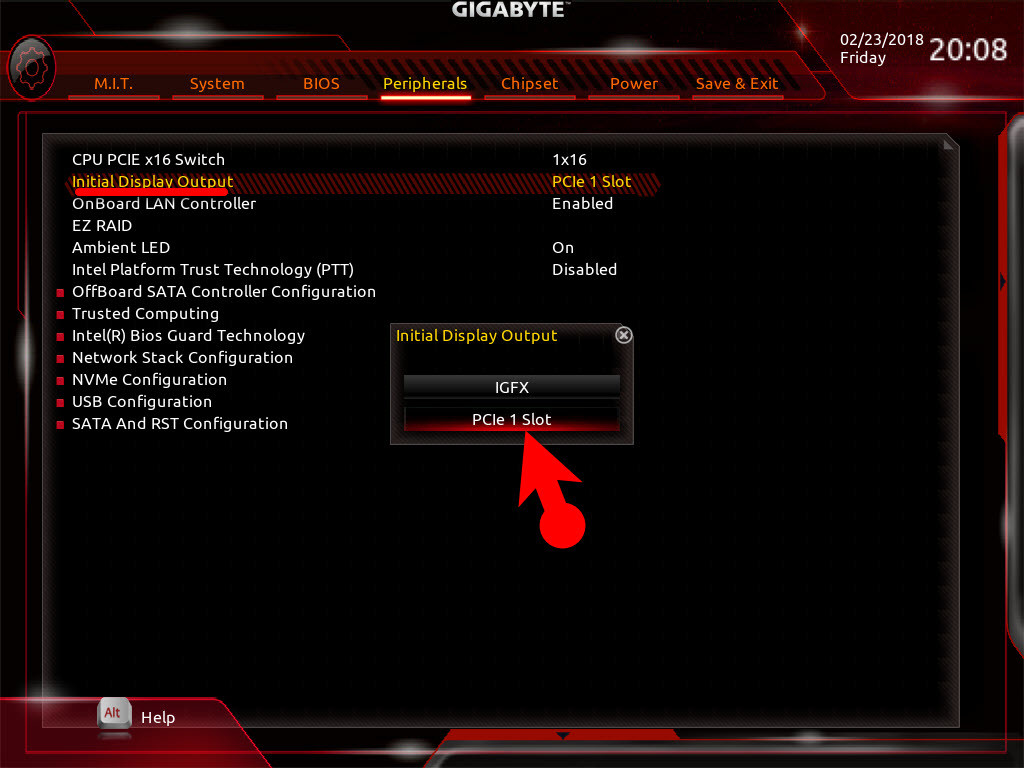

#4. On Peripherals tab, select PCIe 1 Slot for Initial Display Output.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Initial Display Output

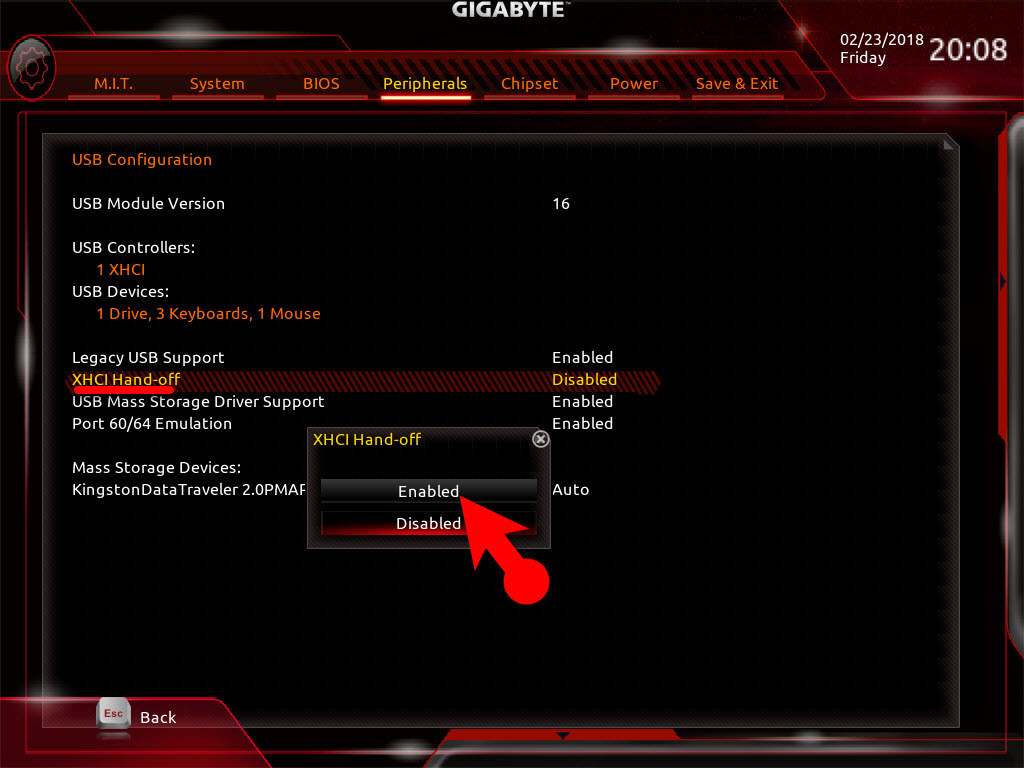

#5. Enable XHCI Hand-Off on Peripherals tab.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

XHCI Hand-Off

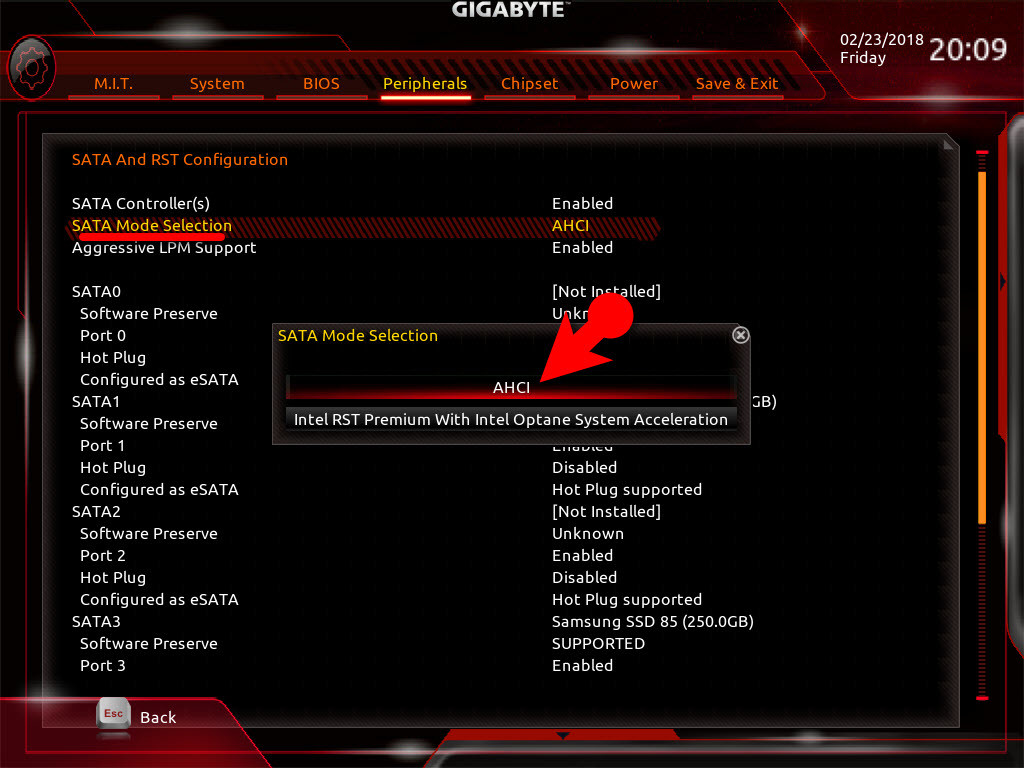

#6. Set the SATA Mode Selection to AHCI.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Sata Mode to AHCI

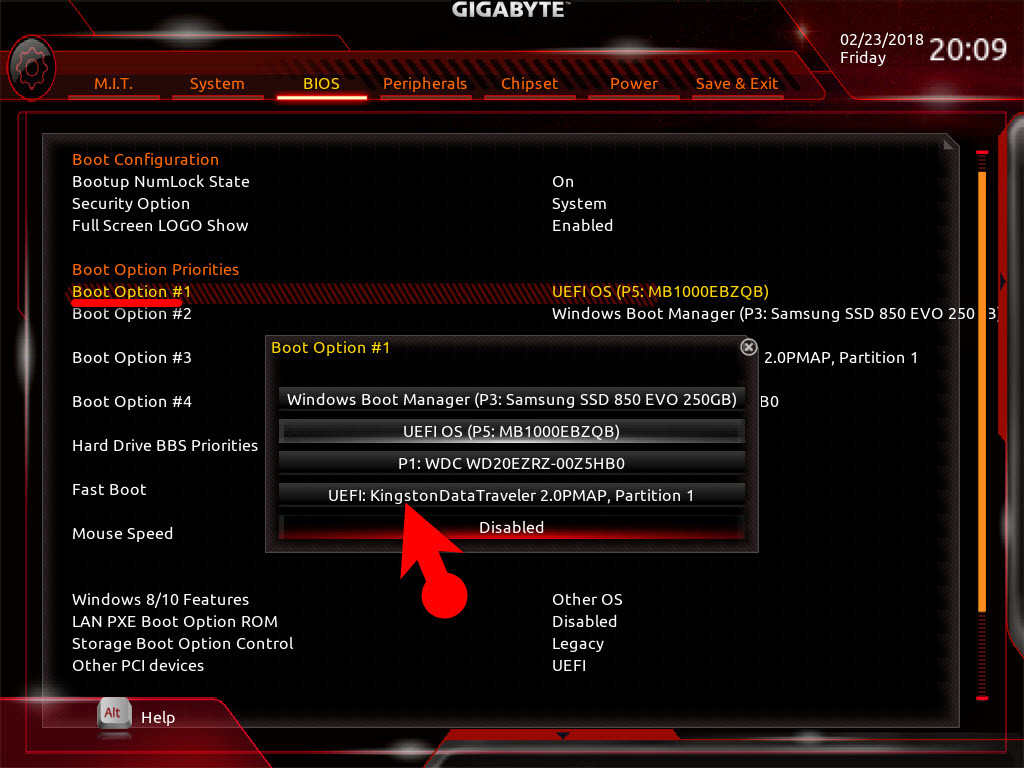

#7. On the BIOS tab, select the Boot Priority (Boot Option 1) your USB flash drive. It means when your system restarts every time it automatically boots from USB. You don’t need to press any key.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Boot Priority

#8. If your system has Secure Boot Mode and IO Serial Port, Disable them. Also, Set OS Type to Other OS.

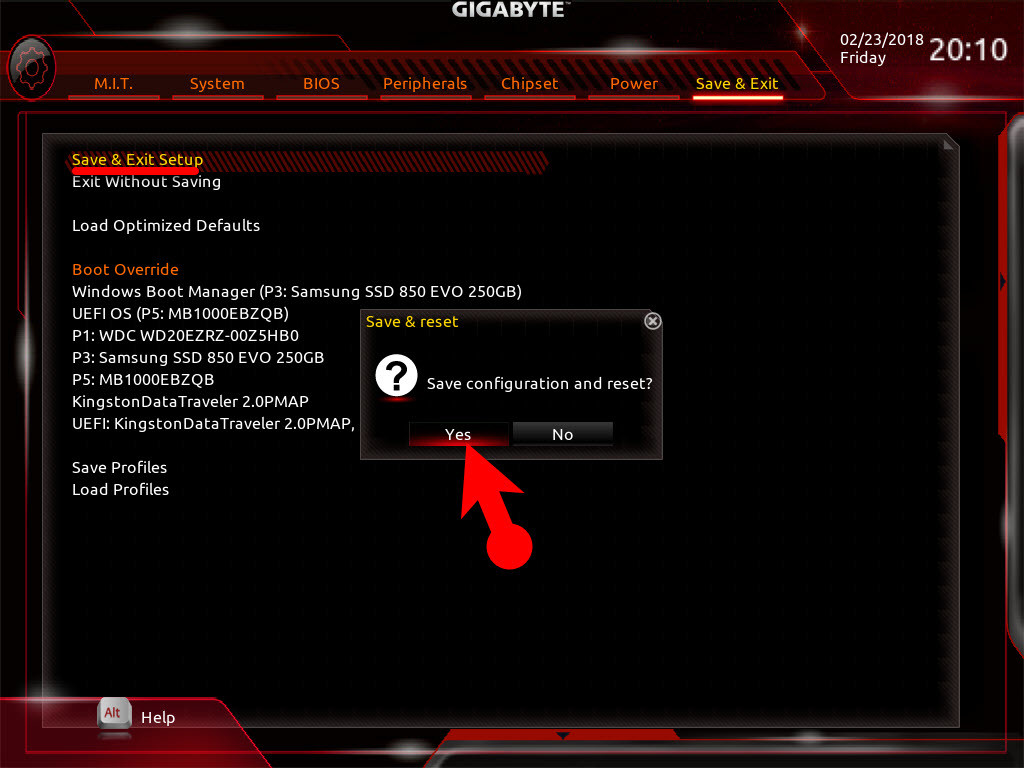

#9. Navigate to Save & Exit tab and select Save & Exit Setup, click Yes.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Save & Exit

Step #4. Install macOS High Sierra on PC

You’re almost done up to here. It’s better to insert your bootable USB installer to USB 2.0 port, but if your system doesn’t have any issue with USB 3.0, then you can use it too.

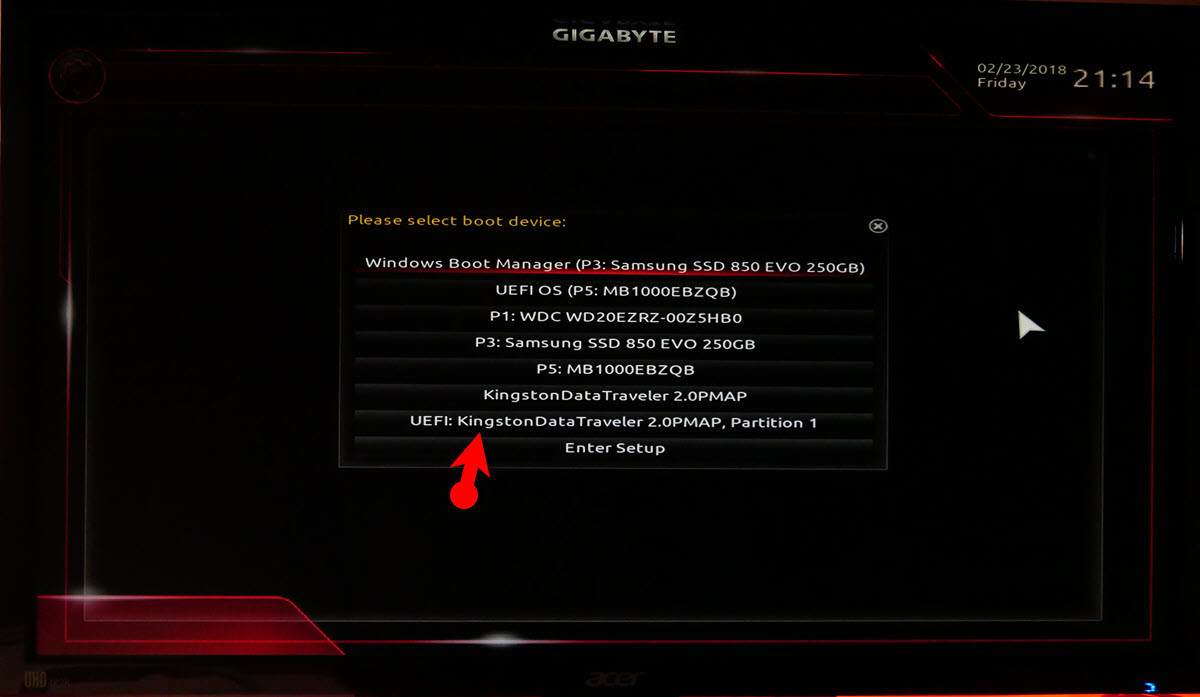

#1. Turn on your computer and Press the Boot Menu Key (F12 for Gigabyte motherboards, F8 for Asus motherboards and F11 for ASRock motherboards). Choose a USB Thumb drive. Here my USB installer is Kingston Data Traveler 2.0, so I select it.

Related: Boot Correctly into Bootable USB Installer for macOS Sierra

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

01Gigabyte Boot Menu

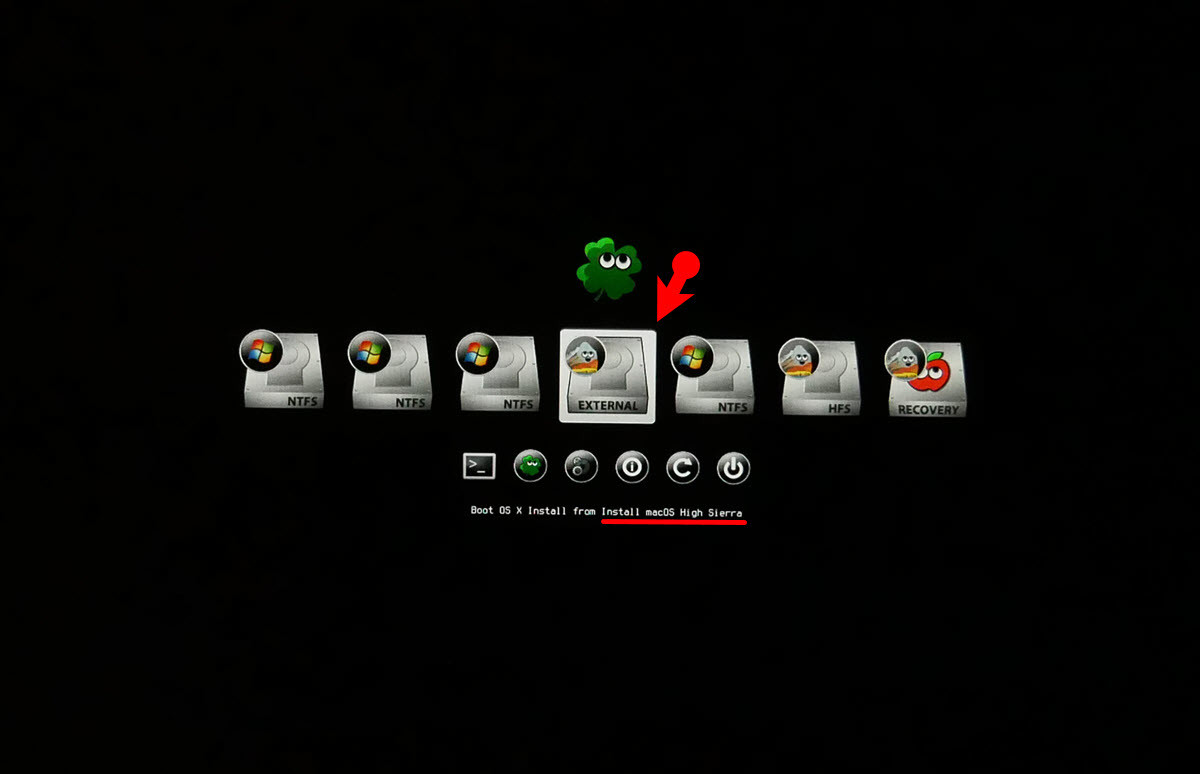

#2. At the clover boot screen, choose (ExternalBoot OS X Install from Install macOS High Sierra. Wait for a few minutes until you see the Language page. Select your prefered language, click Continue arrow button.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Clover Boot Menu

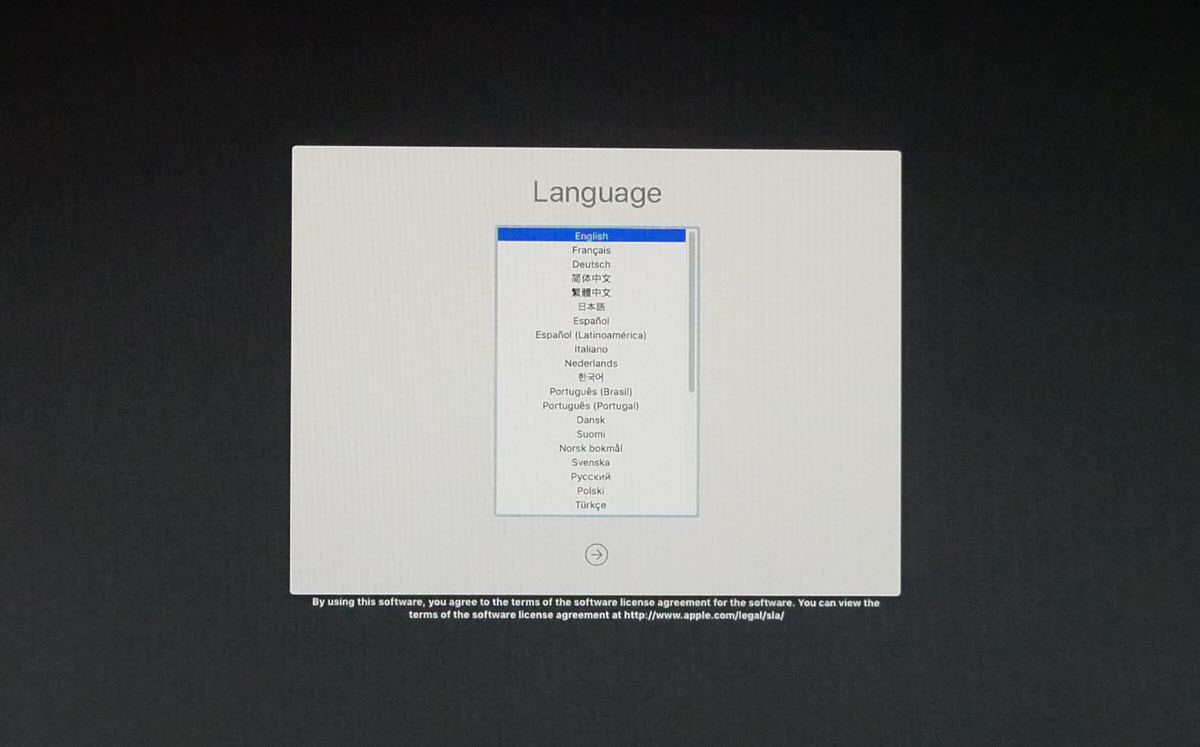

In case you have issues reaching the installer, you can use the spacebar on the boot screen to enter alternate boot modes such as verbose and safe mode. For more instructions on entering the Boot Flags, see Clover Basics and Switching Advice.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Select Language

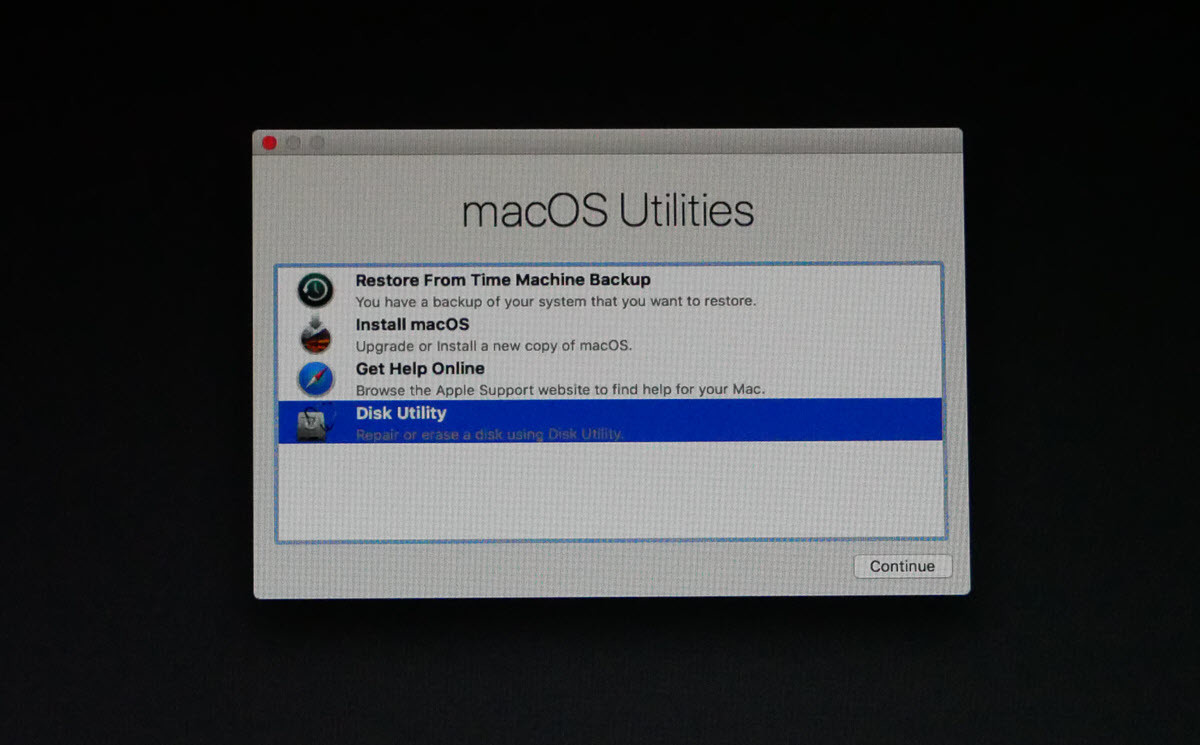

#2. Now, select Disk Utility from the macOS utility window and click Continue.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

macOS Disk Utilities

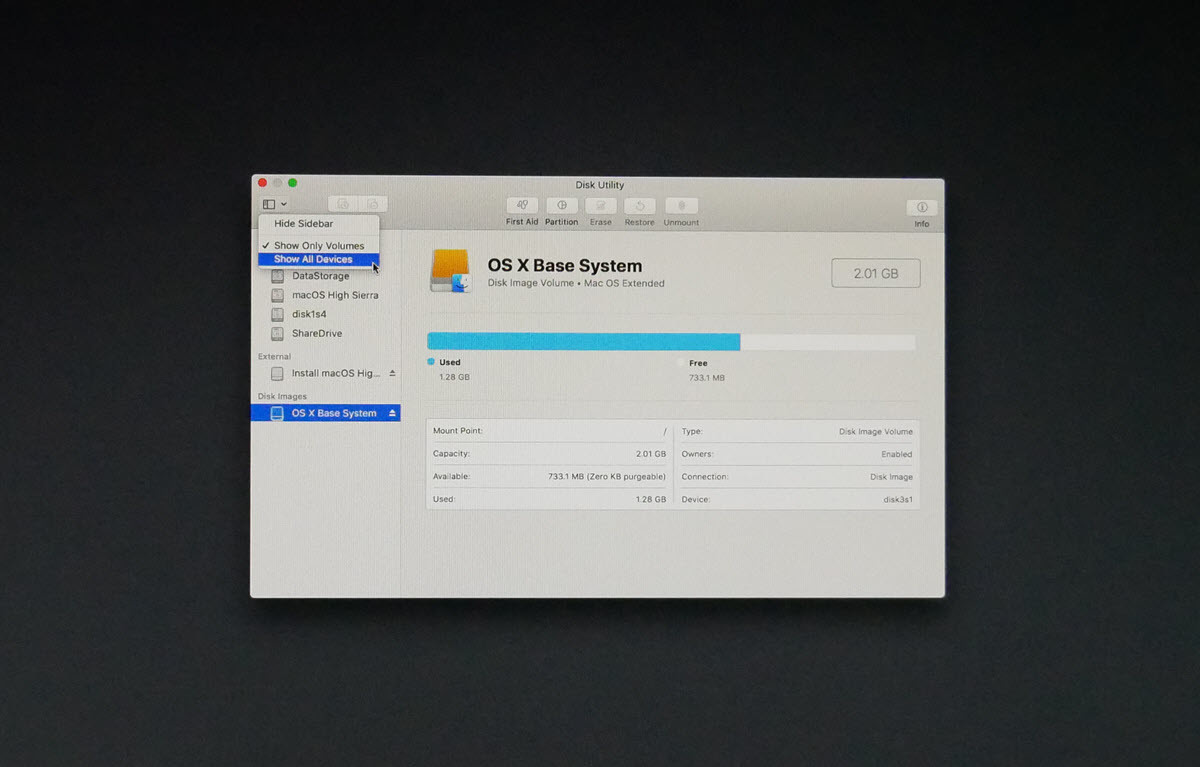

#3. Click a Small Arrow at the top left-corner of Disk Utility window and click on Show All Devices.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Disk Utility Window

#4. Select the drive you want to install macOS High Sierra on. Click on Erase tab and as a name type HighSierraHD or any other name you want. As Format choose Mac OS Extended Journaled or APFS and as Scheme choose GUID Partition Map.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Format Disk

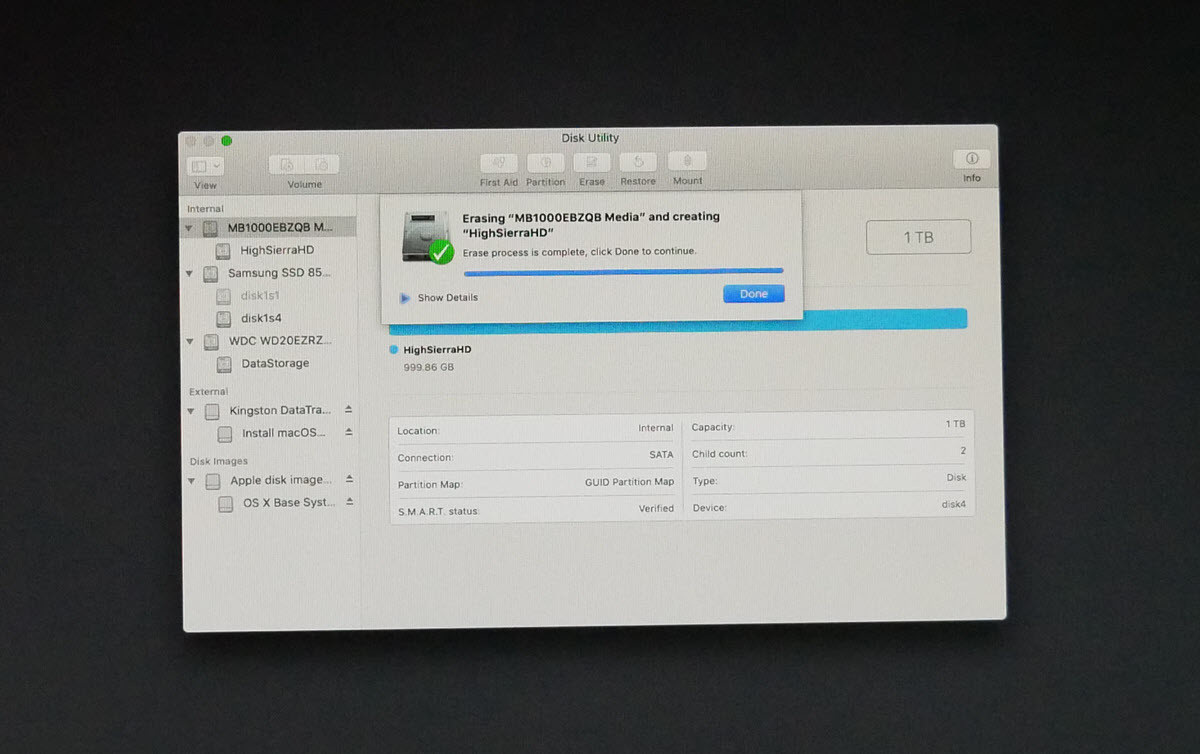

#5. Once the formatting process has finished, then click Done and close Disk Utility window.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Disk Format

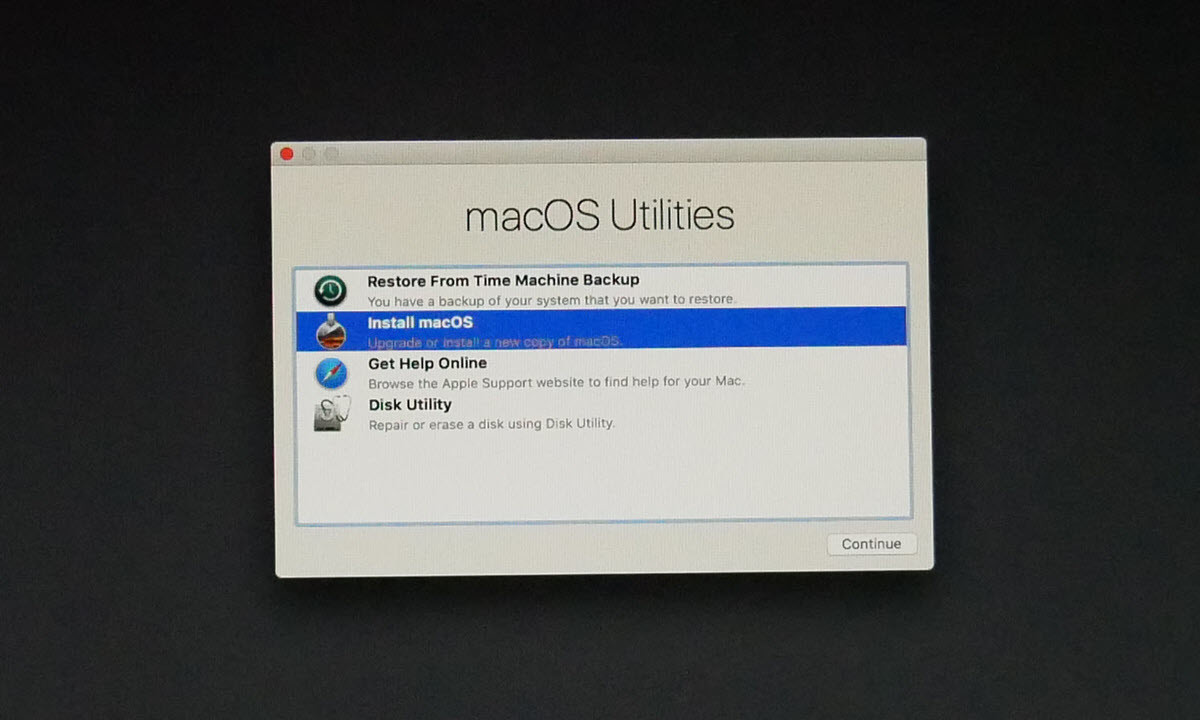

#6. This time select Install macOS and click Continue.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Install macOS

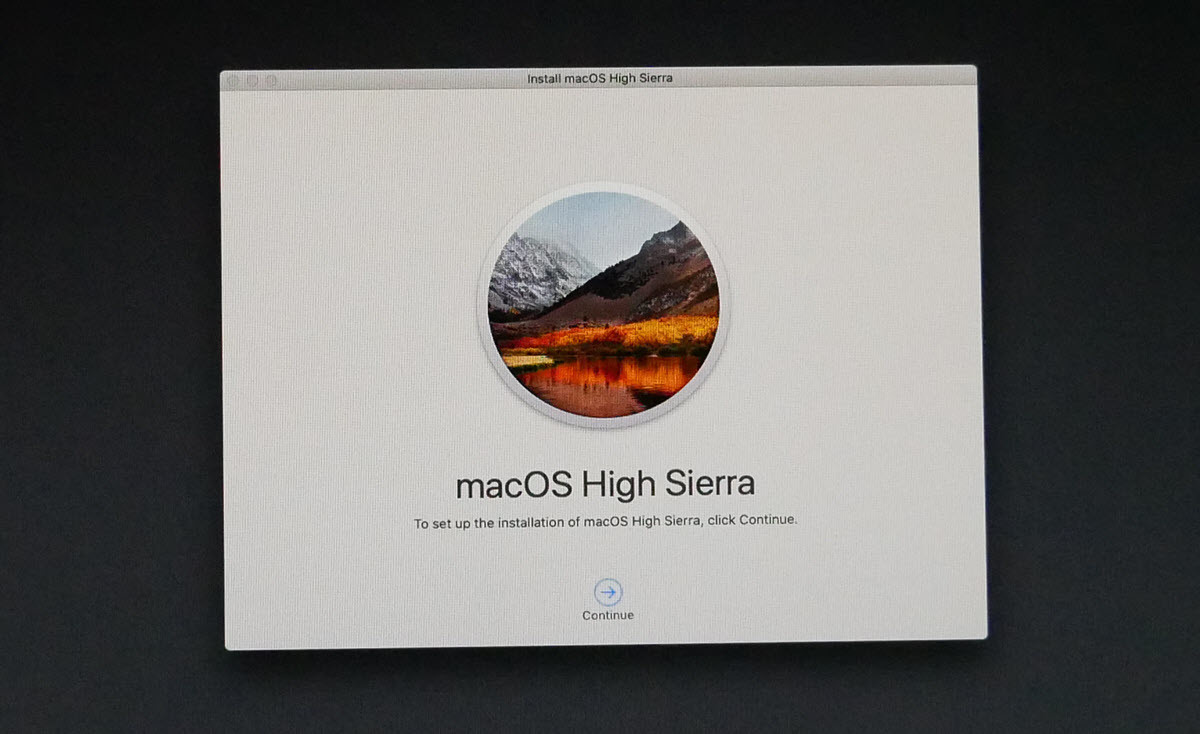

#7. Click Continue.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Install macOS High Sierra

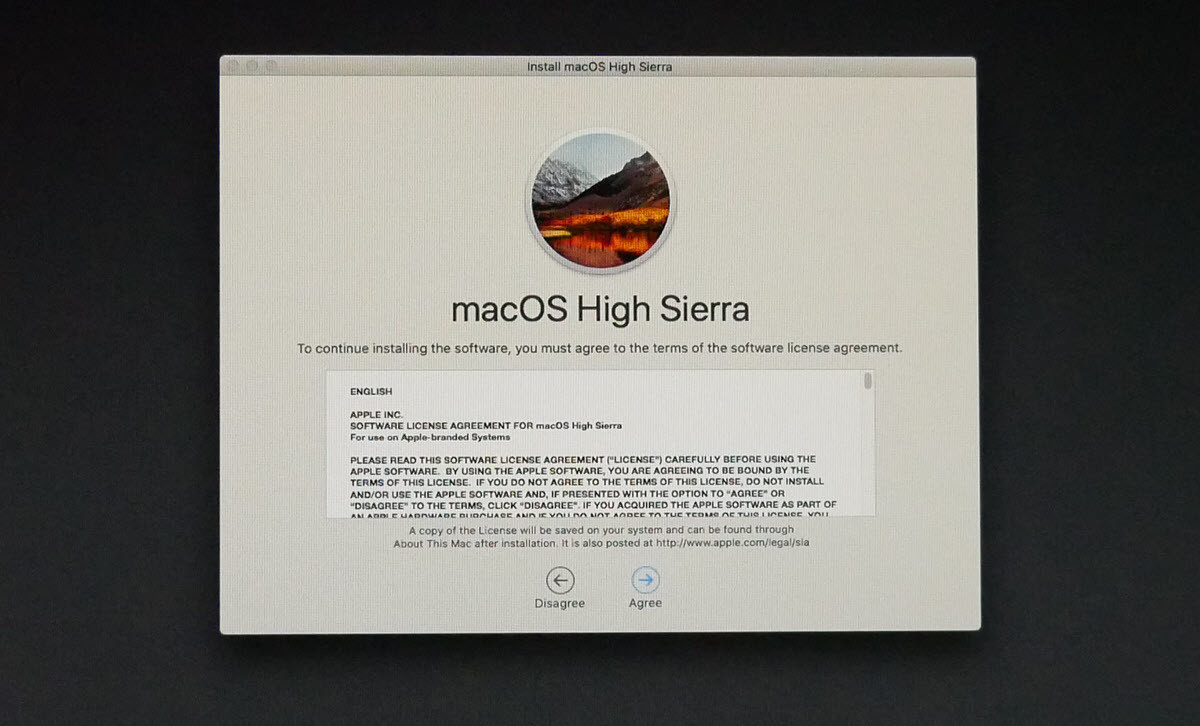

#8. Click Agree.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Agree to terms and Conditions

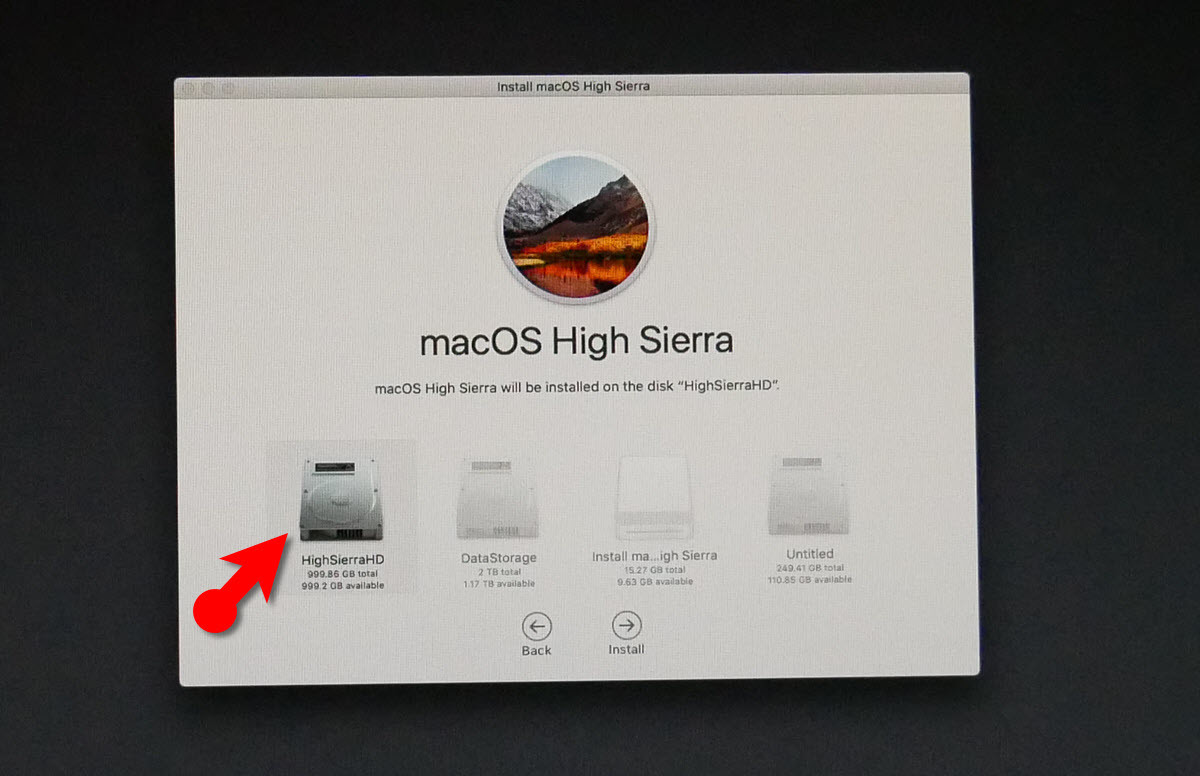

#9. Select HighSierraHD that you’ve formatted in step #4 and click Install button.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Select Disk

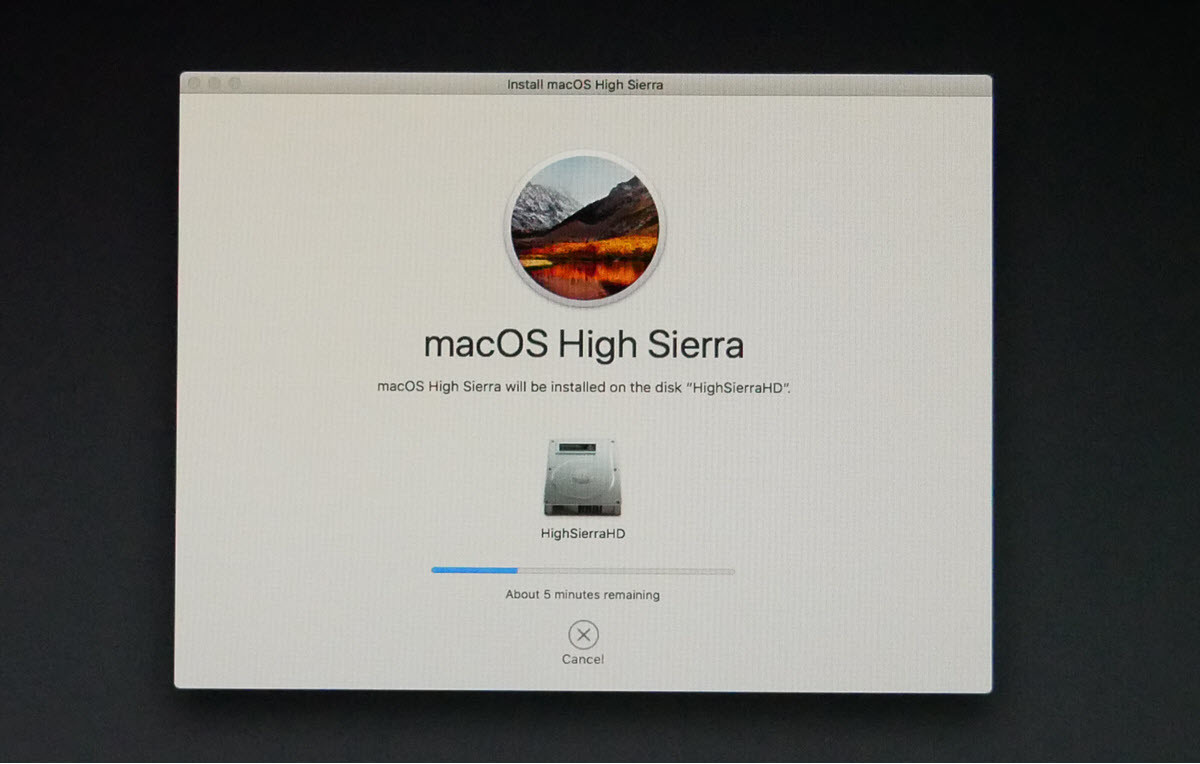

Wait for a few minutes and have a cup of coffee until the installation should complete.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Installing macOS High Sierra

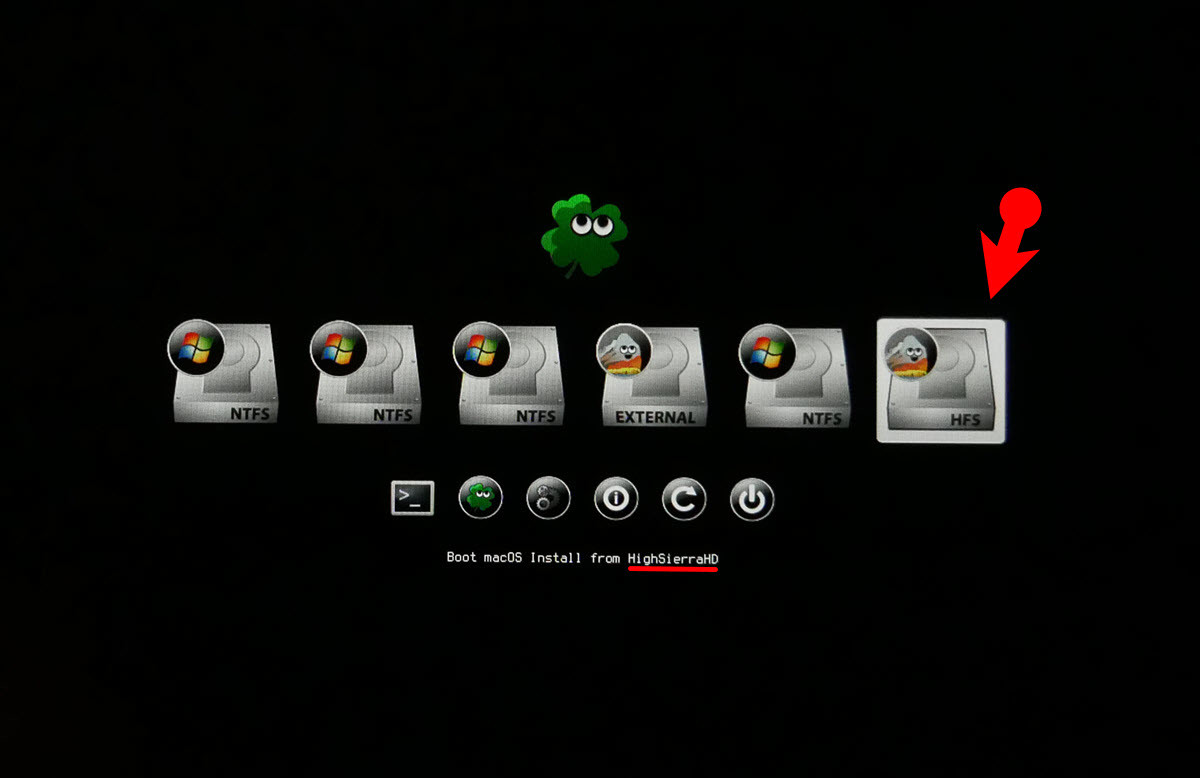

Once your system restarts, press the boot menu key again and boot to macOS High Sierra via USB and then select the HighSierraHD drive and click Enter from your keyboard.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Select macOS High Sierra HD

#10. Perform a clean installation of macOS High Sierra.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Perform a Clean Installation

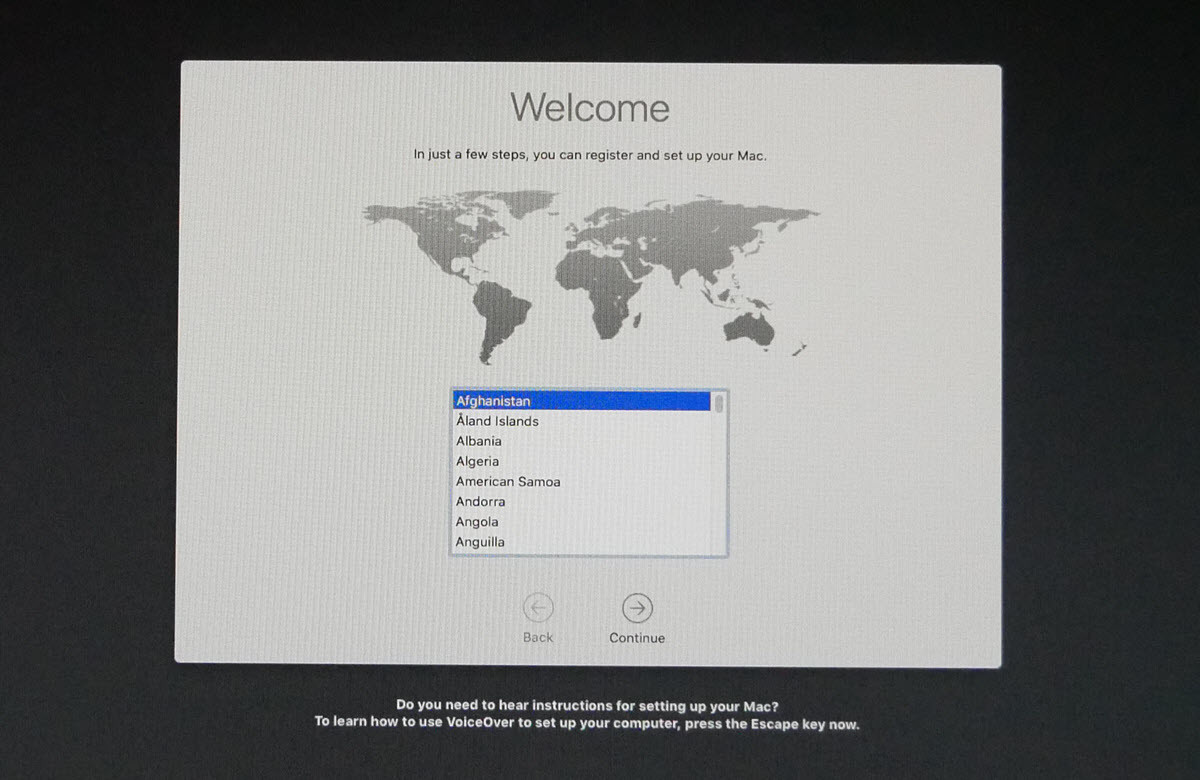

  • Choose your Country and click Continue.
  • Choose a keyboard Layout and click on Continue.
  • Now select don’t transfer any information now to this mac and click on Continue.
  • Enable location services and click on Continue.
  • Select Don’t Sign In. If you would like to use your Apple ID, you can use, but we recommend not to use right now. Also, if you don’t know how to create Apple ID, then visit this step by step Guide.
  • Agree to the Terms and Conditions.
  • Fill out the Full name,  Account name, Password, Hint and check the box of Set time zone based on Current location. Then finally click on Continue to create your user account for macOS High Sierra 10.13.
  • On the Expres Set Up page, you don’t want to do something click Continue.
  • Wait for a few secs to Setting Up Your Mac.
Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

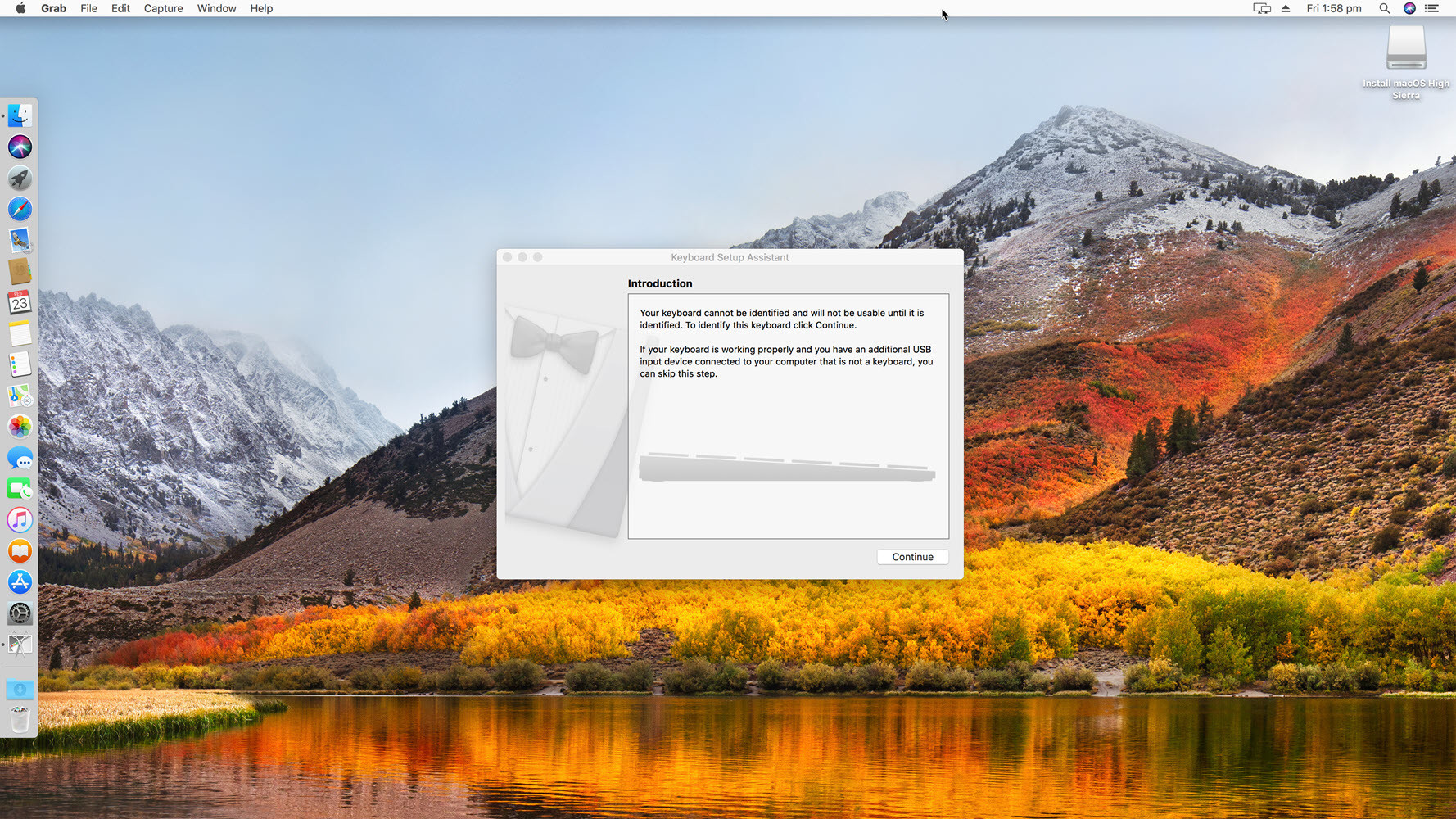

Installation Completed

Step #5. macOS High Sierra Post Installation

For the post-installation of macOS High Sierra, you need the following tools.

  1. Clover Configurator (Optional)
  2. MultiBeast (required)
  3. EDIMAX WiFi Card (Required)

When you install macOS High Sierra on PC, then you’ll see the snapshot down below. Click Continue and follow the keyboard setup assistant guide.

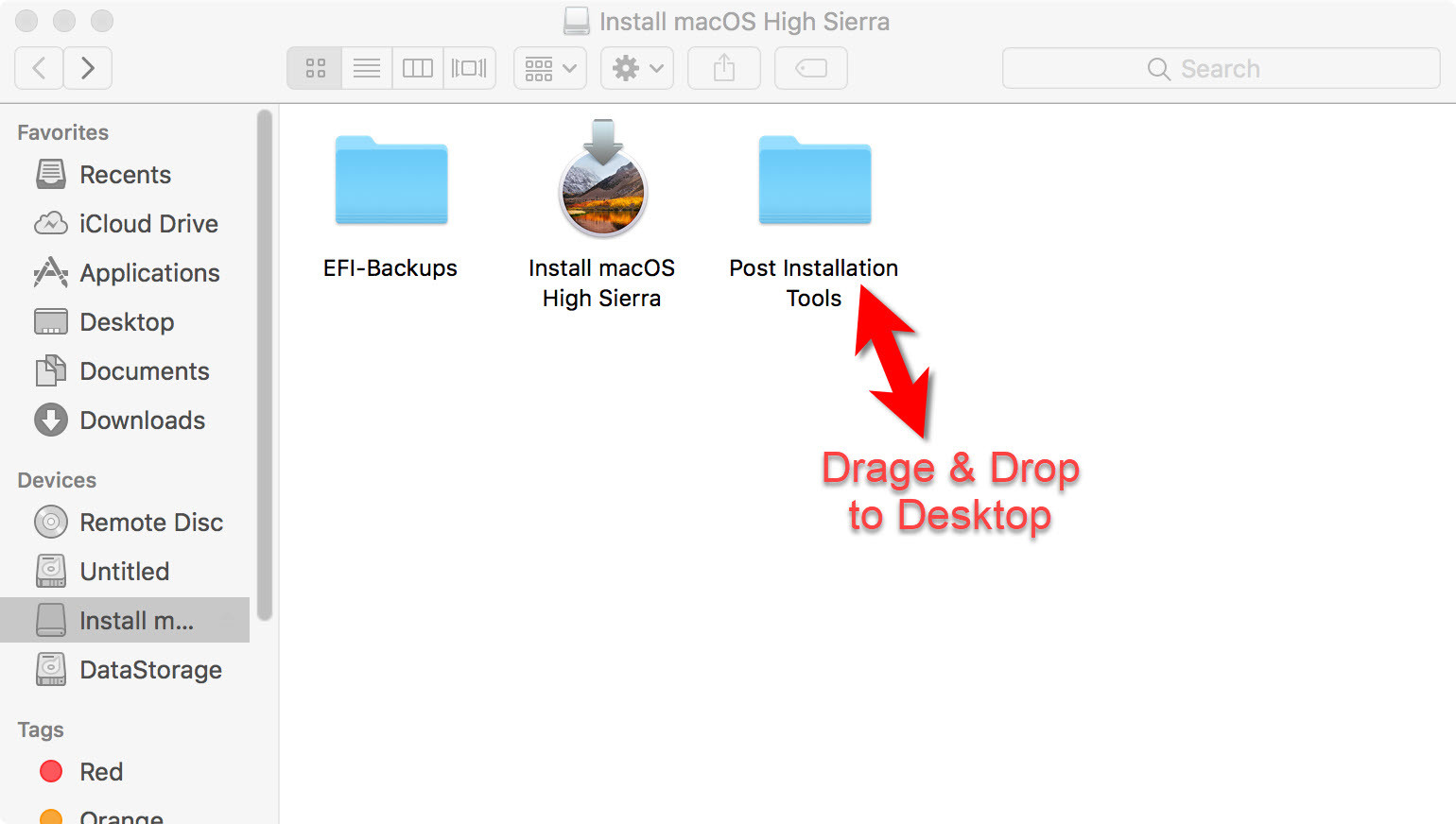

#1. Download MultiBeast and EDIMAX WiFi Card driver. If the MultiBeast application didn’t work for you then for advanced modification, you need to download Clover Configurator.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Required Files for Post Installation

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Post Installation Tools

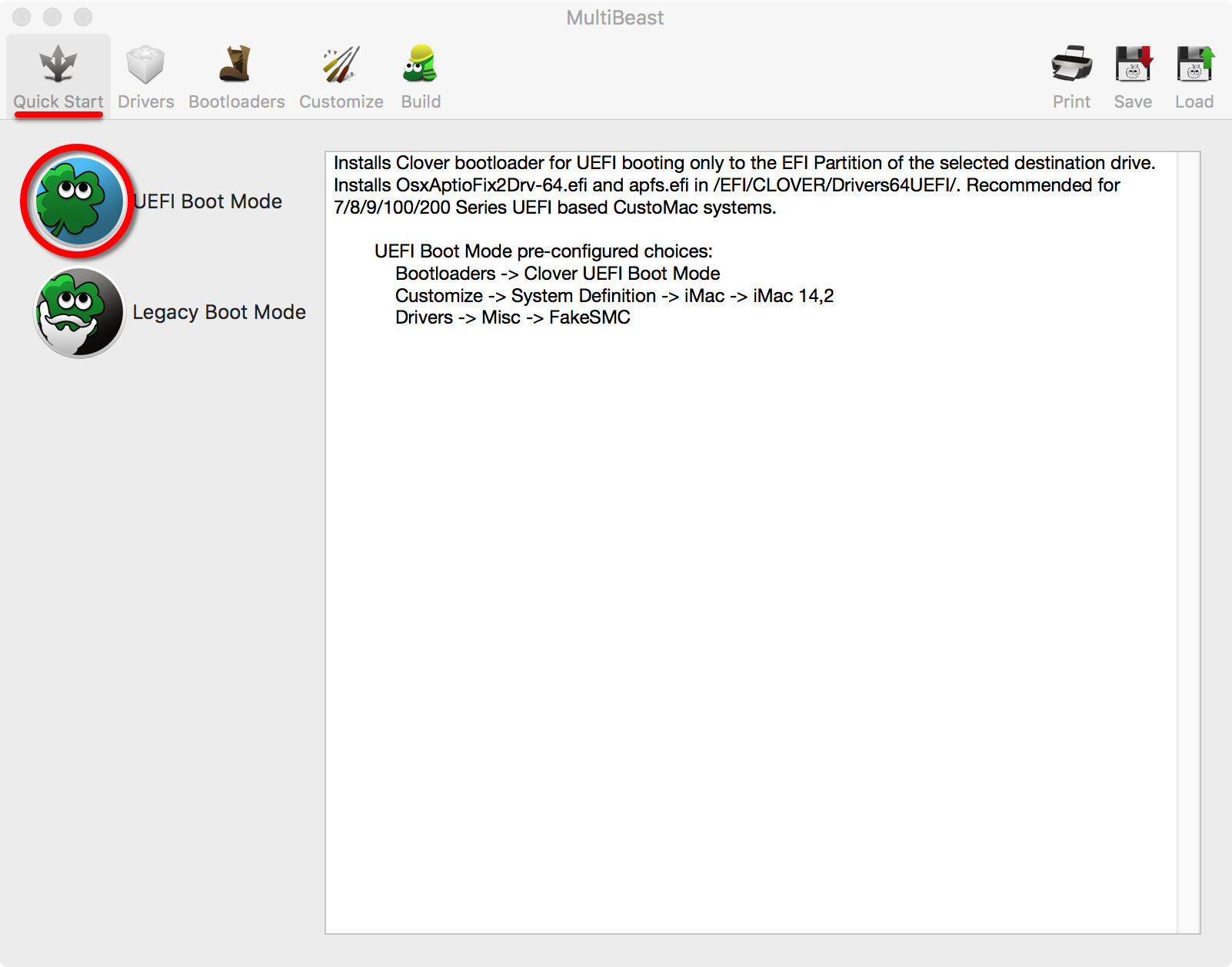

#2. Open and Run MultiBeast. If this is a fresh installation, click Quick Start. UEFI Boot Mode is recommended for 7/8/9/100/200 Series CustoMac desktops and all UEFI capable systems. Legacy Boot Mode is recommended for 5/6 Series CustoMac desktops and all BIOS-Based systems.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Quick Start UEFI Boot Mode

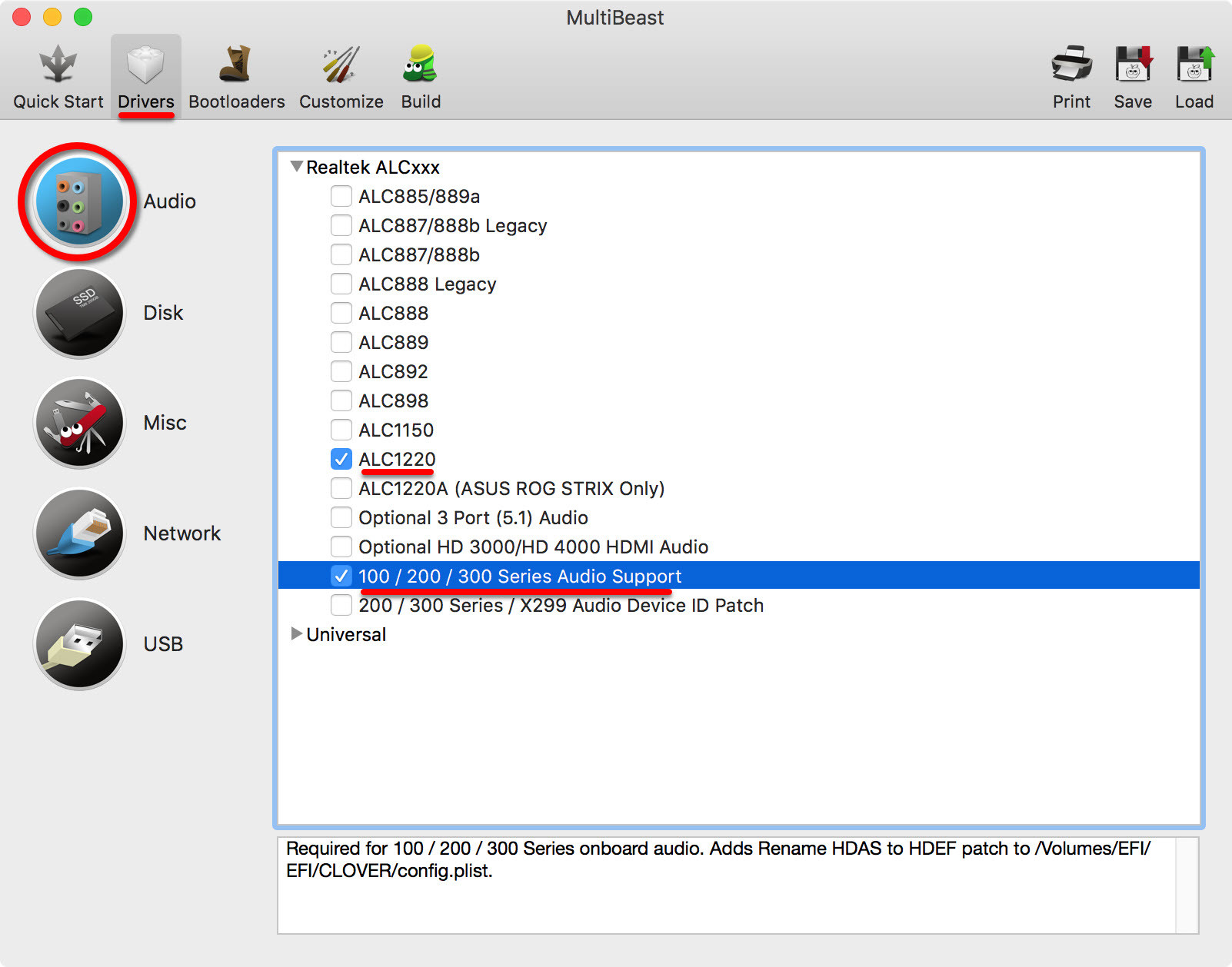

#3. Choose the appropriate audio and network driver for your system. In my case, I select ALC1220 and 100/200/300 Series Audio support.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Audio Drivers

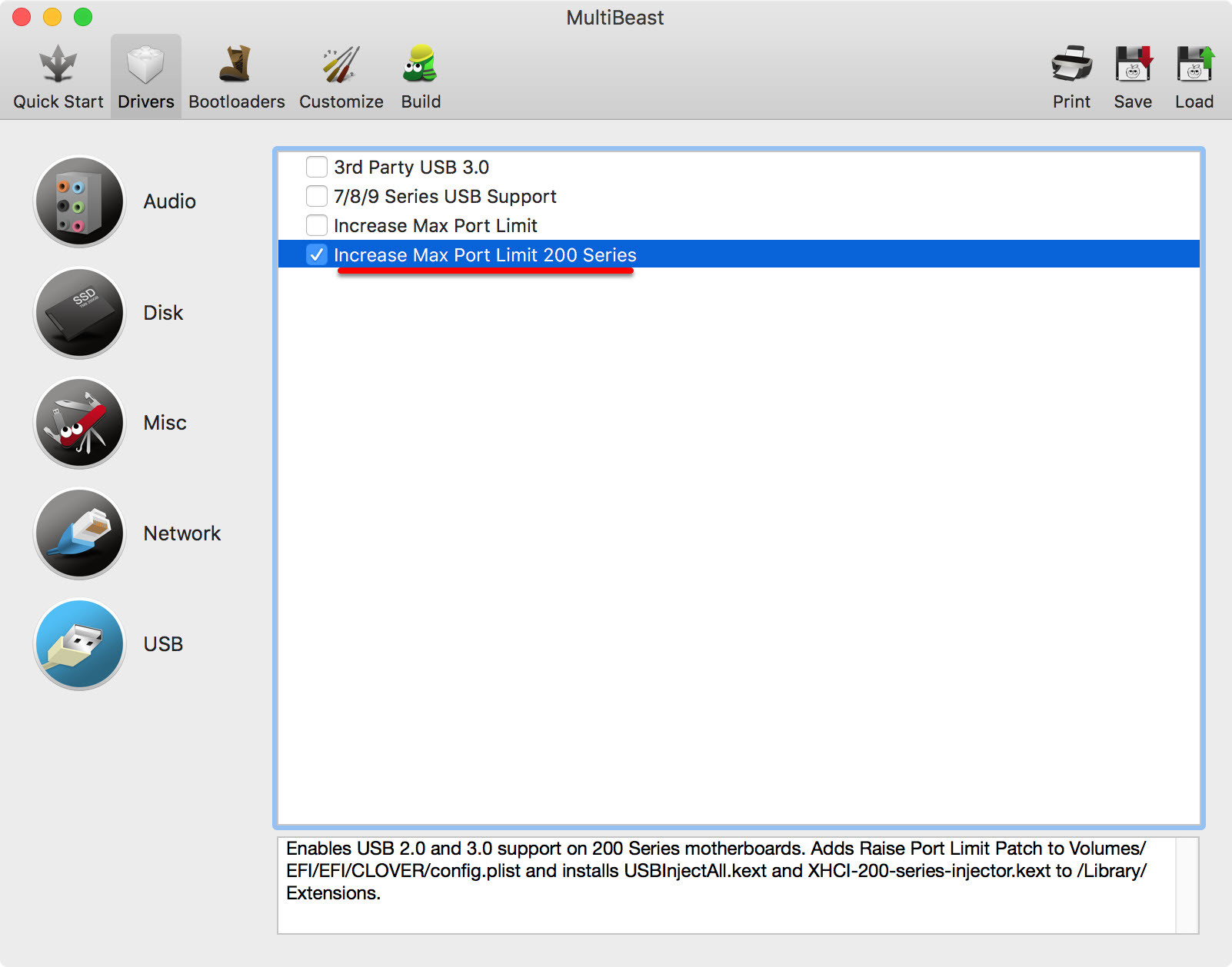

#4. For USB, I choose Increase Max Port Limit 200 Series. It’s not 100% necessary that you must select this option. I prefer to choose this option.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

USB Drivers

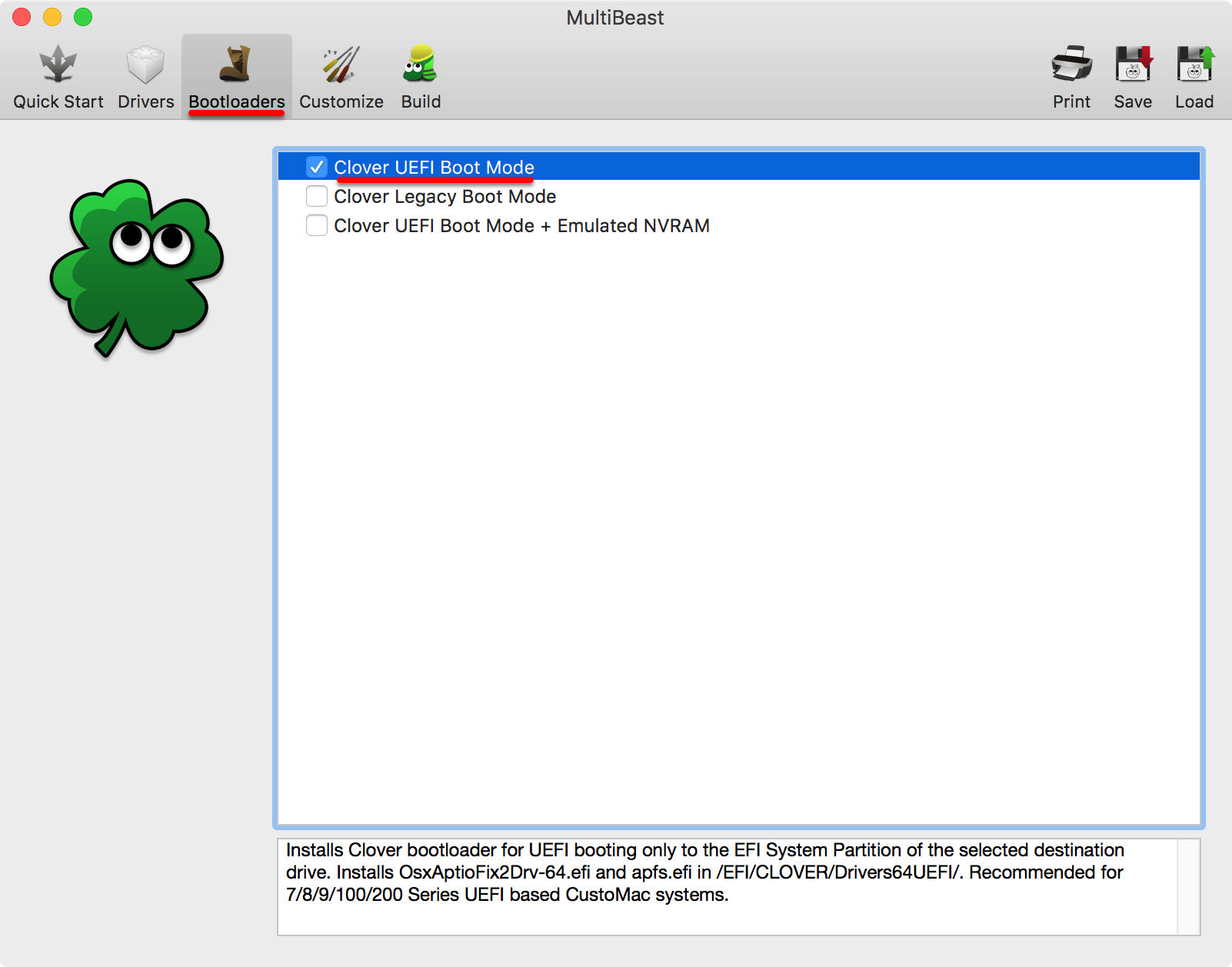

#5. On the Bootloaders section, select UEFI Boot Mode.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Bootloaders

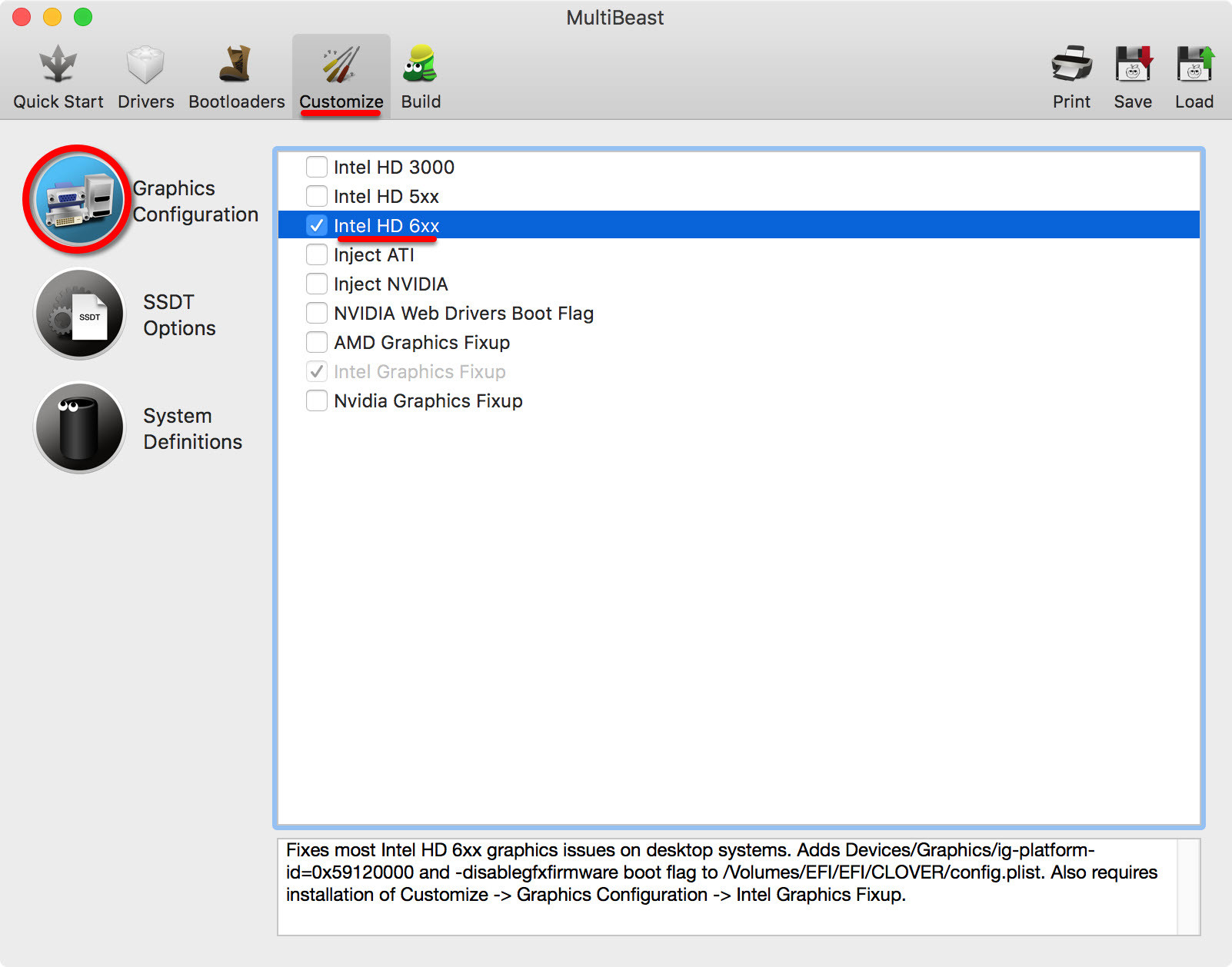

#6. On the Customize tab, select your Graphics card. I don’t use NVIDIA, so I choose Intel HD 6xx. If you use Nvidia graphics card, then you’ve to select NVIDIA Web Drivers Boot Flag with NVIDIA Graphics Fixup.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Customise Graphics Configuration

#7. Select Sandy Bridge Core i5 or i7 Overclocked. If your CPU is not Core i5 or i7, then you don’t need to check out this option.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Customise SSDT Options

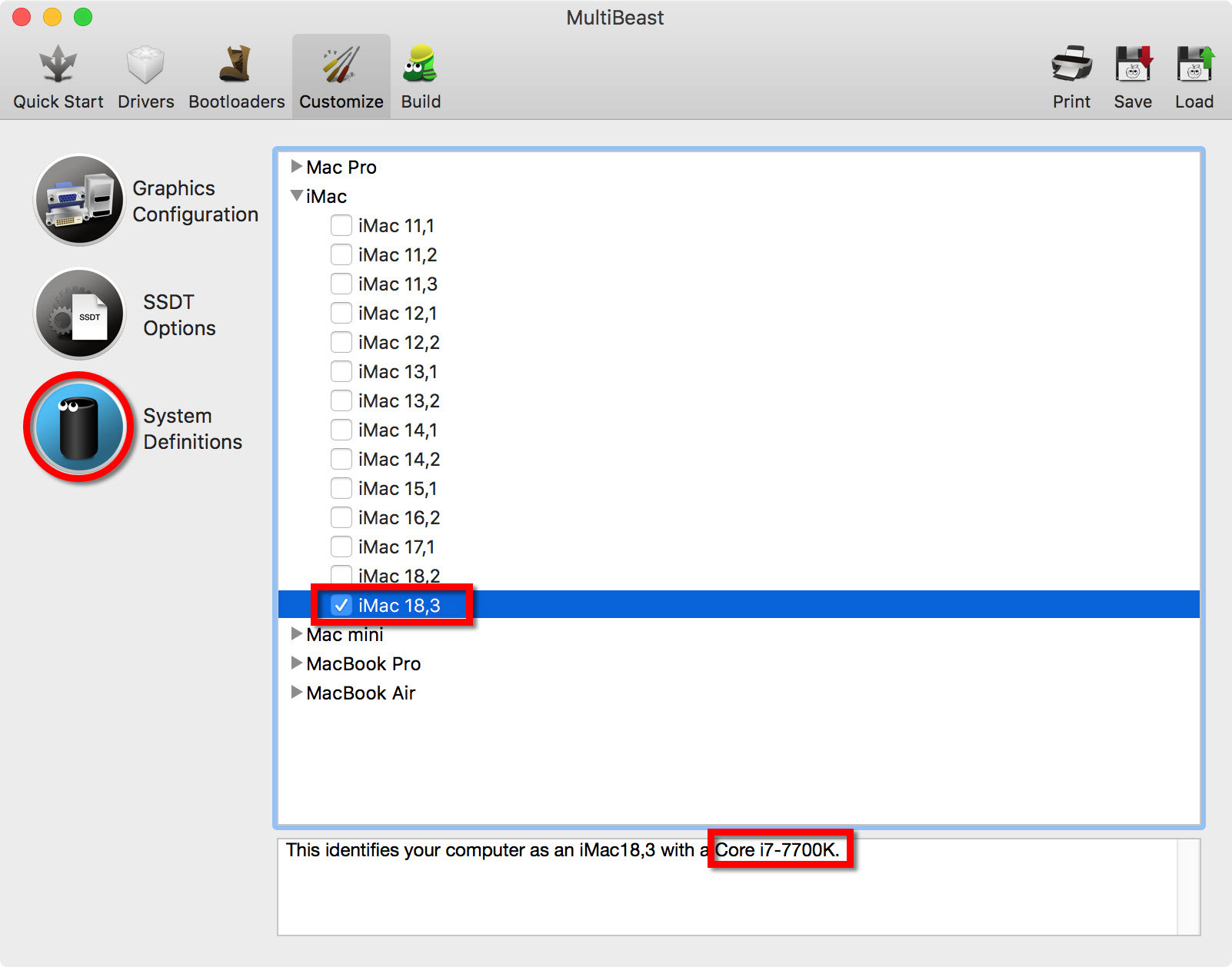

#8. Select an appropriate system definition. In my case, I select iMac 18,3 because my CPU is Intel Core i7-7700K.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Customize System Definitions

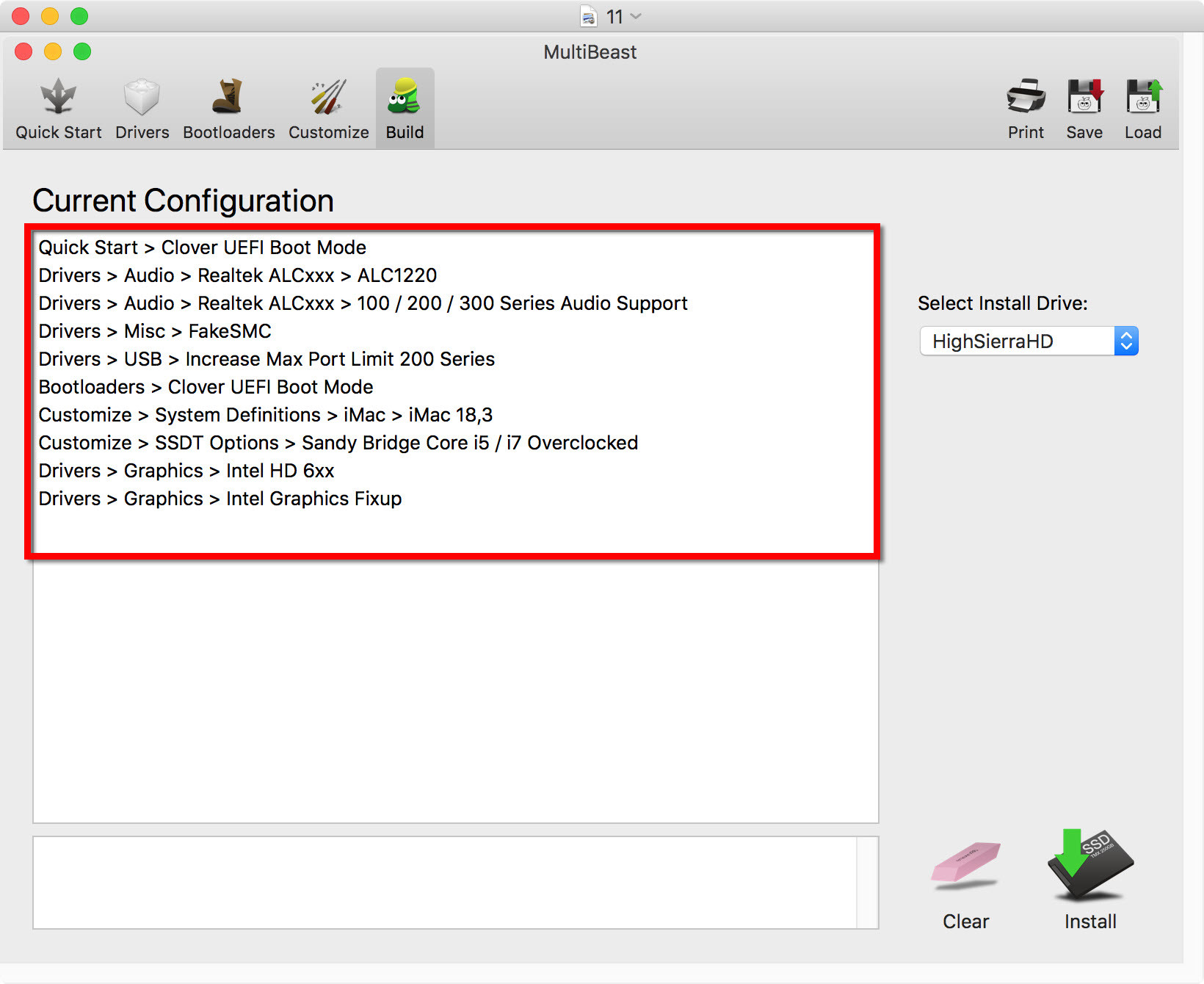

#9. Finally, click on the Build tab and select the drive you want to install the modifications. Click the Install button.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Current Configuration

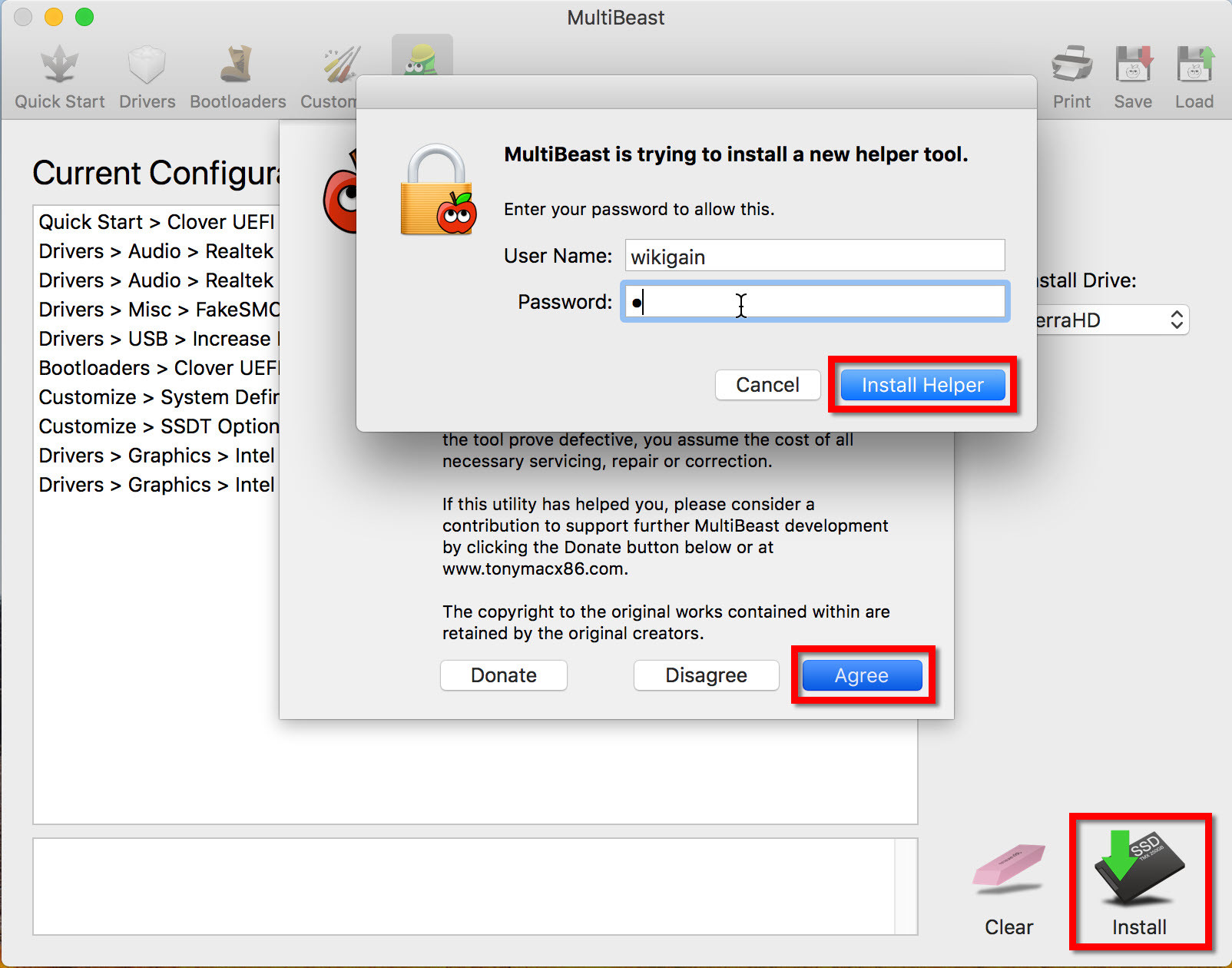

#10. Click Agree and enter your username & password then click Install Helper.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

User Privileges

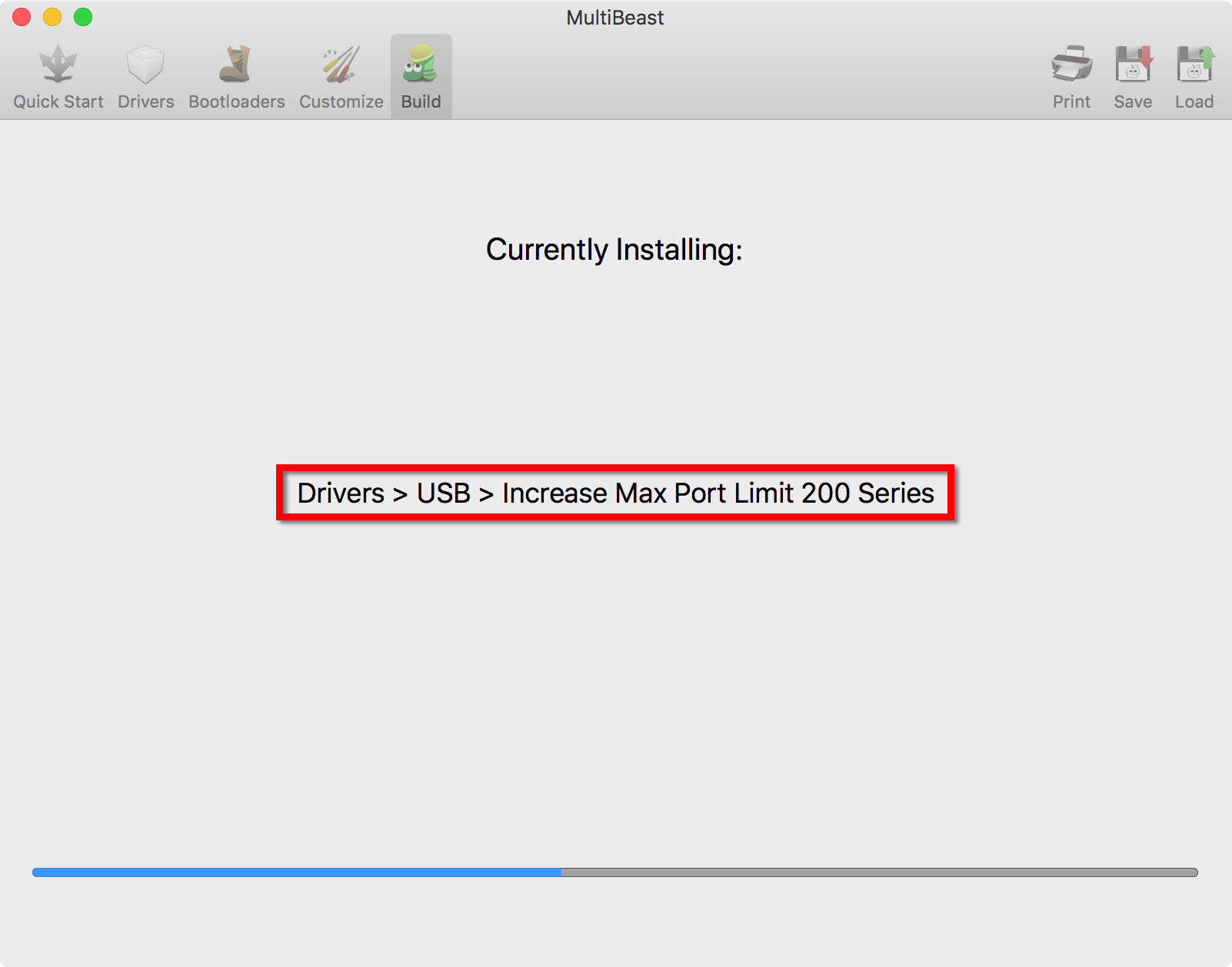

It may take a few minutes to complete. Just be patients.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Installing Drivers

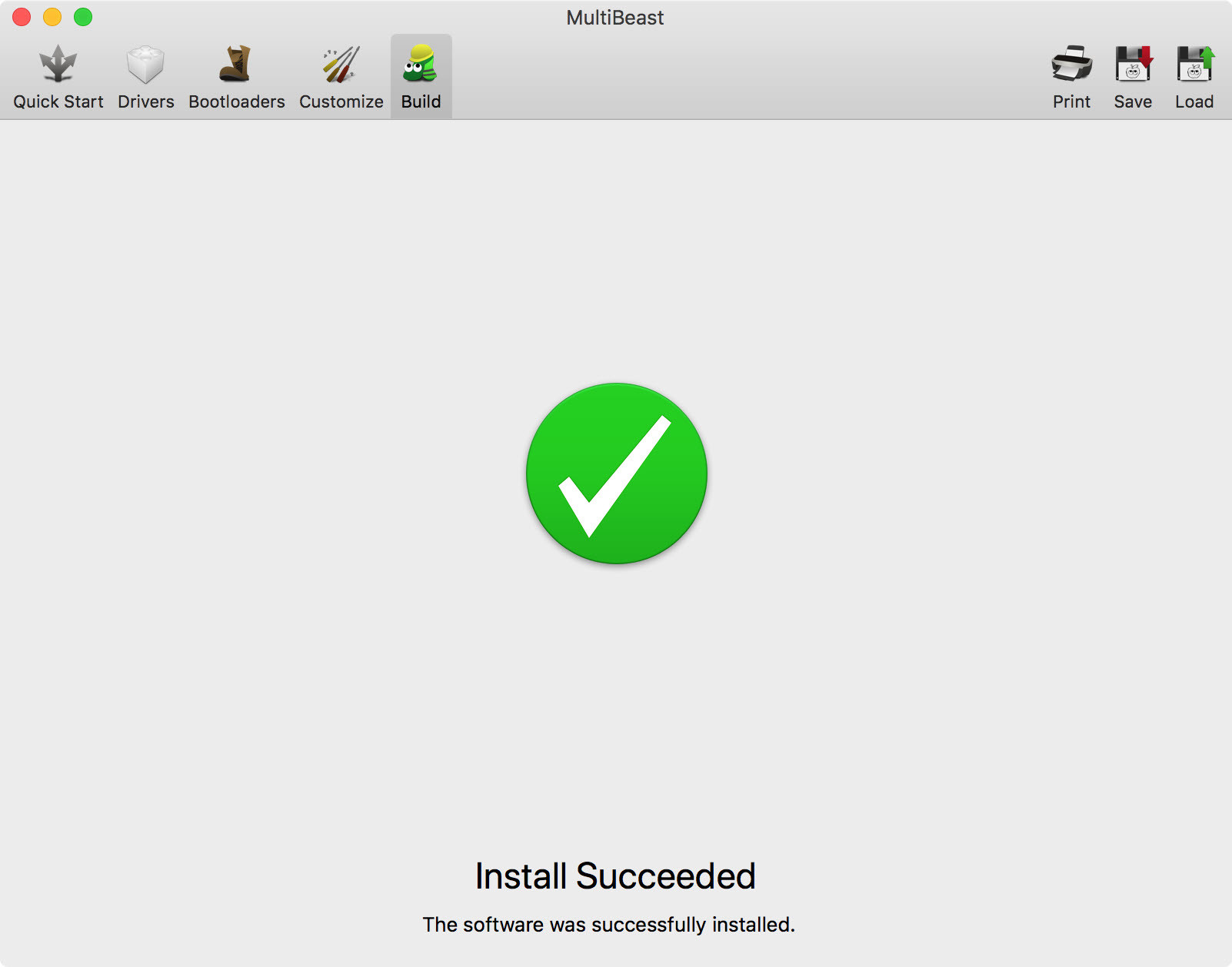

Once the software is successfully installed, then restart your system.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Install Succeeded

Step #6. Troubleshoot

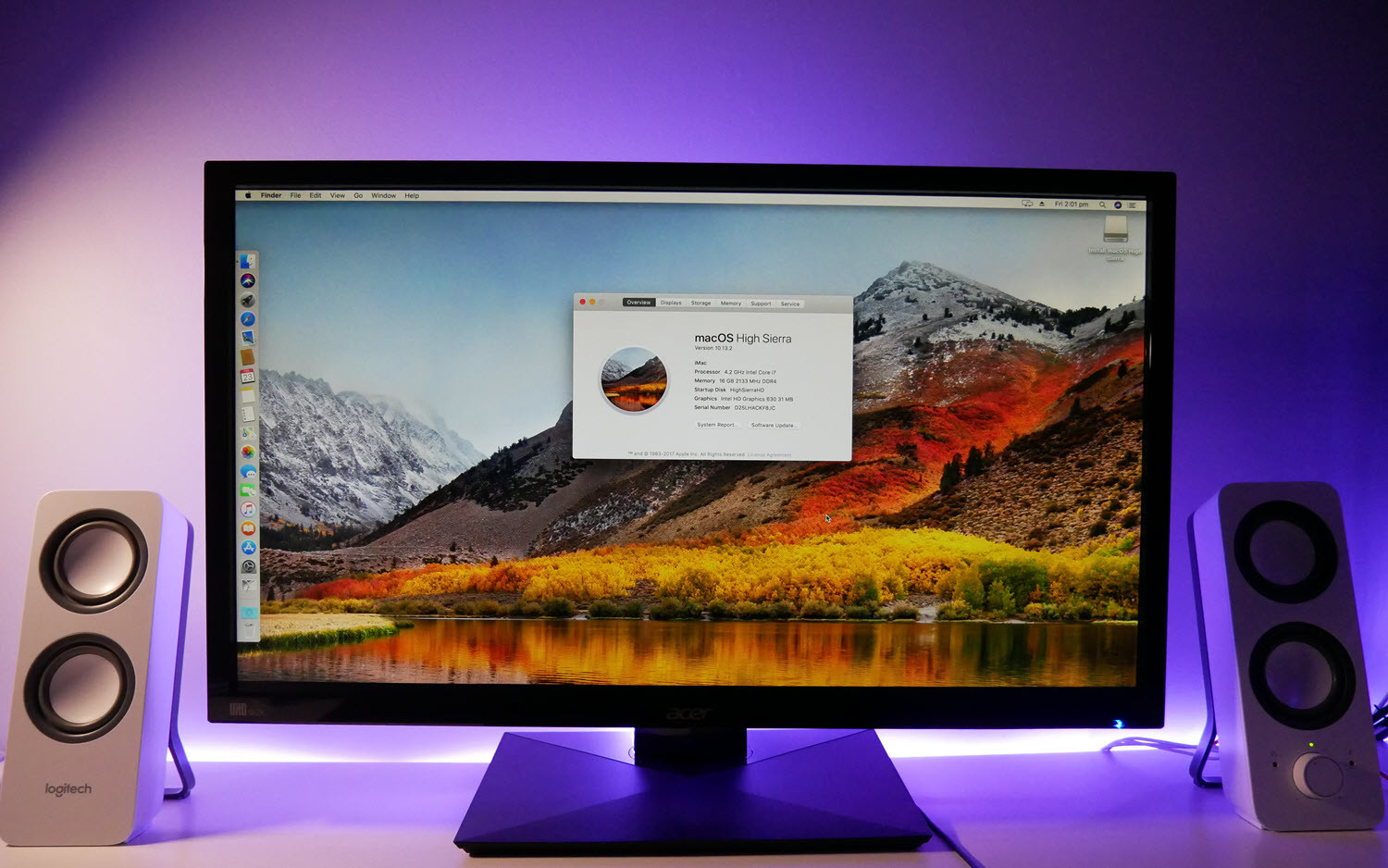

If you’ve got any problem feel free to troubleshoot your device and also let us know if you’ve got any question.

Step by Step Guide: Install macOS High Sierra on PC -Hackintosh 2018

Final Result

Conclusion

It’s all about how to install macOS High Sierra on PC.

Thanks to all of the hard working developers, hackers, and testers all over the world without whom this guide would never have been possible. Special thanks to Tonymacx86 that provided UniBeast and MultiBeast. This guide can be complete by your suggestion and comments. Please feel free to share your experience with Hackintoshing your PC. We promise to update the post if we get a reasonable explanation from you guys. Thank you for reading this lengthy article.
